PowerBook 3400 M3553 Track Pad Replacement

Geschrieben von: Michael Mondragon
  • Kommentare: 1
PowerBook 3400 M3553 Track Pad Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

Your track pad is one of the most important parts of your PowerBook's user interface. If the track pad is damaged you will need to use an external mouse or replace the track pad. This is one of the hardest parts to get to in the computer. Before attempting, make sure you will be able to keep the removed parts organized to aid in reassembly.

  1. cLysbvqM5GjE6vUT

    • Close the screen and turn the PowerBook over, orienting the computer upside down, using the label to guide you.

  2. oQL3hDJgDydDle6x
    oQL3hDJgDydDle6x
    BUAuNYmLLNYnNhVg

    • Hold the button on the front left side and slide the battery out.

  3. RWKtY2YDJLqwQTsh

    • With a Torx T8 screwdriver, remove the three Torx 24mm screws along the center of the back panel.

  4. xOa16RB5mqYnngOD
    xOa16RB5mqYnngOD
    neUHmLX3YGZT6yLY
    uPT2LQibm5KAHEvt

    • Turn the computer over and open the display. You should see that the keyboard is loose.

    • Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

    • Slightly lift the front of the keyboard up, and slide the keyboard towards yourself.

    • Carefully lift the top half of the keyboard and pull it towards yourself.

  5. uJyDmbCXFEG2PNR6
    uJyDmbCXFEG2PNR6
    LXvMUFwHRfPoGkuF

    • Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.

    • Gently remove the ribbons from its tabs.

    I did find that, strictly speaking, you don’t need to remove the ribbons. If you carefully hold up the keyboard up towards the screen with one hand, you can remove the old RAM and install the new one with the other. I suppose you could also use a length of masking tape to hold the keyboard up.

    I found it easier not to remove the ribbon, especially as I couldn’t find my plastic opening tool.

    Scott -

  6. AtGHnKxgOFTa6epY
    AtGHnKxgOFTa6epY
    fDKEDRSyjdecD5SS

    • Gently wiggle the RAM card to loosen the connection until it pulls free.

  7. PNekZIYynrJXCByt

    • Push the display screen back to give yourself enough space to remove the side panels.

    • Before removing the side panels, note that removing the side panels hastily will damage the underlying panel screw. However, this will not affect the functionality of your PowerBook.

    • Remove the panels on either side by gently but firmly pulling up on them with both hands.

  8. moJBTGRHeqswg5ID
    moJBTGRHeqswg5ID
    jfr2PICpgkdYHp1Y

    • Use the plastic opening tool to lift up the tabs on either side of the ribbon cable port and then gently pull the ribbon cable free.

  9. YFQmgChhvmdJOZlI
    YFQmgChhvmdJOZlI
    ImRnpXT5EBHfLdEZ
    mANmLx5xFYoSJpV5

    • WARNING: There is a high risk of breaking the tabs that lock the panel to the casing. Remove the panel slowly and cautiously to avoid damage.

    • With your index finger and your thumb, squeeze the track pad panel to loosen the clamps. Then slide the panel towards yourself.

  10. faUrlTbP6XQEpGCc
    faUrlTbP6XQEpGCc
    qbgKRmohLScUHtqg
    KOkEAGhpQPFl6JrR

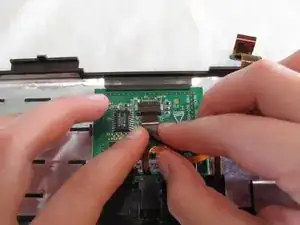

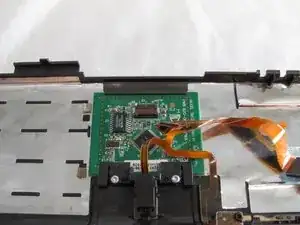

    • Push the buttons on the side of the ribbon cable port on the track pad to release the ribbon cable. Then gently pull the ribbon cable free.

  11. PJPcoEMYKid2pY2Q

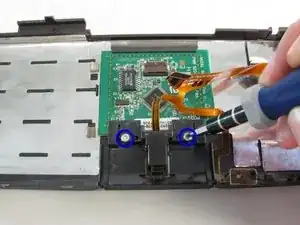

    • Remove two T8 7mm long torx screws from the bottom of the track pad panel.

  12. FUL1M4JlarYLXqse

    • Slide the track pad button off of the track pad panel.

  13. nkpGrR3AqyQeK1hh

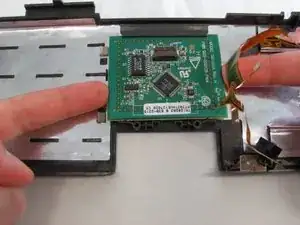

    • Remove the track pad by gently lifting up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
