PowerBook G3 Lombard PRAM Battery Replacement

Geschrieben von: iRobot
  • Kommentare: 2
PowerBook G3 Lombard PRAM Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The time and date, as well as other settings, are kept by the PRAM battery when your machine is off.

  1. ITATkwmFQBbi5MTa

    • Turn the computer so that the ports are facing you.

    • If the keyboard is locked, open the port cover and turn the keyboard locking screw until the keyboard is unlocked.

  2. fwBkEOWkucSCjelm

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

    • Make sure you have removed the laptop battery and CD/DVD module from the expansion bays before proceeding.

  3. 5EEEnRsFCJVVs1EW

    • Lift the keyboard out by pulling it up and away from you. Rest the keyboard, face down, on top of the trackpad.

    • In order to replace the keyboard, you must first remove the modem.

  4. JxYQix3wYYdd6jms

    • Pull the battery cable directly up from the logic board.

  5. RfPcwqjAjP1OgAwM

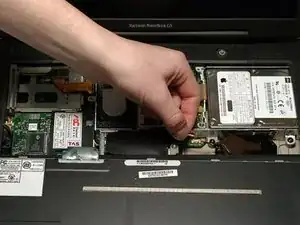

    • Remove the battery from its holder by pulling up and to the left.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

iRobot

Mitglied seit: 25/09/09

0 Reputation

2 Kommentare

Step 4, 5 and 6 are useless for changing the PRAM battery..

Godzil -

Seems the step I was referring to are no longer there!

Godzil -
