PowerBook G3 Pismo Optical Drive Replacement

Geschrieben von: iRobot
  • Kommentare: 0
PowerBook G3 Pismo Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

It's easy to change or upgrade the optical drive mechanism to a combo or SuperDrive.

  1. ZvvSo42i3EajAseh

    • Use the lever at the front of your laptop to remove the optical drive bay from the computer.

    • Remove the 2 Phillips #00 screws from the left side of the optical drive housing.

    • These screws are longer than those on the other side.

  2. r1Z4qJKAwgUtIiUy

    • Remove the 2 Phillips #00 screws from the other side.

  3. YhKjpaJnU5ZEaYkn

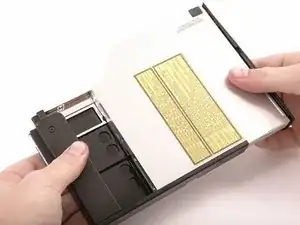

    • Grasp the black drive housing in one hand and the drive itself in the other, then slide the two apart.

    • If you have a CD or any other object jammed in your optical drive, we have an optical drive repair guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
