PowerBook G4 Aluminum 15" 1-1.5 GHz Airport Extreme Card Replacement

Geschrieben von: iRobot
  • Kommentare: 1
PowerBook G4 Aluminum 15" 1-1.5 GHz Airport Extreme Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 5 Minuten

Einleitung

Install an Airport Extreme 802.11g card internally.

Werkzeuge

Ersatzteile

  1. cSjY4VwZCbhFeh5r

    • Use a coin to turn the battery locking screw 90 degrees clockwise.

    • Lift the battery out of the computer.

  2. TgIqXXep3NgOGr55

    • Flip down the door on the right side of the battery compartment.

  3. pWZEIA6YVWPRjOEe

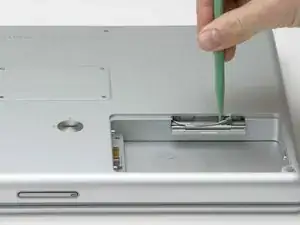

    • Use a spudger or flathead screwdriver to disconnect the Airport antenna from the card.

  4. aqAyjoEpSAaCdKE1

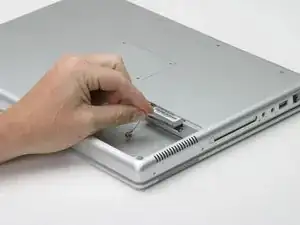

    • Grasp the plastic tab and pull the card out all the way.

    I accidentally, cut the wire that plug with the small adapter, can you help me to see how I can fix it.

    belkin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
