PowerBook G4 Aluminum 17" 1-1.67 GHz Display Inverter Replacement

Geschrieben von: Andrew Bookholt

Kommentare: 2

PowerBook G4 Aluminum 17" 1-1.67 GHz Display Inverter Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Backlight not working? Use this guide to replace a broken display inverter.

Werkzeuge

Ersatzteile

G4 Aluminum 17" Display Inverter

Schritt 1

Remove the two 6.3 mm Phillips screws near the lower left and right corners of the display.
Removing these two screws may be difficult. It is helpful to open the display as much as possible for clearance to use a screwdriver. Also, a combination of #00 Phillips and small flathead screwdrivers along with a pair of tweezers may aid in removal.

It is much safer to follow the instructions for removing the entire display (PowerBook G4 Aluminum 17" 1-1.67 GHz Display Replacement) before removing these screws by bending the display beyond its tolerances.

amatuer6 -

I've already spent 30 mins trying to remove these screws. DO NOT attempt this unless you have plenty of time to waste. Just take the top case/keyboard off and remove the screen assembly to save yourself a big headache. Thanks for the great site.

dwoodusa90069 - 25/07/17

Schritt 2

The picture at left (rear panel already removed) shows the locations of the metal clips (shown in red) that snap on to the front display bezel. In the next few steps, you will use a small flathead screwdriver to release these clips from a ridge around the perimeter of the front display bezel.
When prying in the following steps, be sure not to damage the antenna cables that run around the perimeter of the front display bezel.

Schritt 3

Insert the flat end of a spudger between the rear display bezel and the plastic rim attached to the front display bezel near the lower right corner of the display.
Do not try to insert the spudger between the front display bezel and its plastic surround.
While carefully prying the rear display bezel away from the display assembly, use a small flathead screwdriver to pry the small steel clip nearest the bottom right corner of the display away from the edge of the front display bezel.
Repeat the above procedure until you've released all the clips along the right side of the display.

Schritt 4

Slightly lift the recently-freed corner of the rear display bezel to separate the clips with a spudger along the span of the clutch hinges.

Schritt 5

Insert the flat end of a spudger between the rear display bezel and the plastic surround of the front display bezel near the lower left corner of the display.
Carefully pry the rear display bezel away from the front display bezel to expose the metal clips along the left side of the display.
Repeat the previous procedure to release the clips along the left side of the rear display bezel.

Schritt 6

Slightly lift the lower edge of the rear display bezel and push it toward the top edge of the display, releasing the clips along the top edge of the rear display bezel.
Remove the rear display bezel and set it aside.

Schritt 7

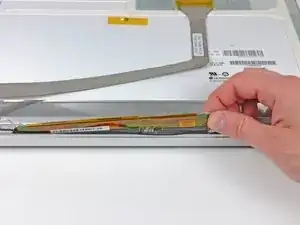

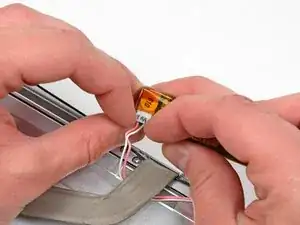

If necessary, remove the tape covering the display inverter.

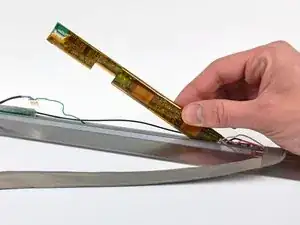

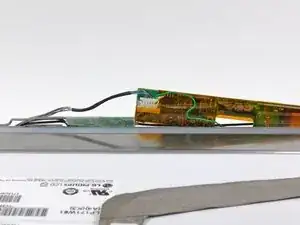

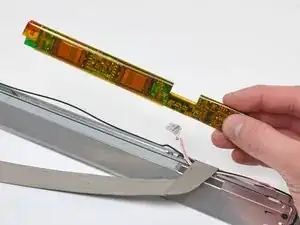

Carefully lift the display inverter board from the side nearest the display data cable connector.
The display inverter is an extremely thin circuit board that is easily broken. Do not excessively bend or twist it during removal.
