Einleitung

Upgrade your RAM for an instant increase in speed.

  1. UIicFGjpFmhKthEX
    UIicFGjpFmhKthEX
    5tolrsUYAtgSUtwS
    • Use your thumbs to push the two battery retaining tabs away from the battery.

    • The battery should pop up enough to rotate it toward yourself and lift it out of the lower case.

  2. LhYBRZM4BxvdTnTv
    • Remove the three 2.3 mm Phillips screws securing the memory cover to the lower case.

  3. T5Jly2FAVmAMeZMq
    T5Jly2FAVmAMeZMq
    IkJluYEE2DWGDMpn
    • Lift the memory cover slightly and pull it toward yourself to remove it from the lower case.

  4. mKFRNNenyWYBKeE4
    mKFRNNenyWYBKeE4
    U2ZKcPuyCX1jJo4L
    YYQcwnpuvMoLdASq

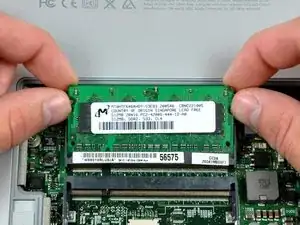

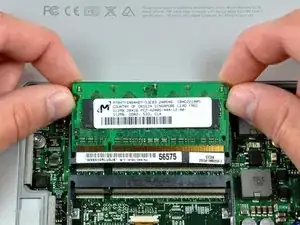

    • Use your fingertips to pull the two RAM arms away from the sides of the RAM chip. The chip should pop up slightly.

    • Pull the RAM chip away from its socket and remove it from the logic board.

    • Repeat this process for the other RAM chip, if present.

Abschluss

To reassemble your device, follow these instructions in reverse order.
