PowerBook G4 Aluminum 17" 1.67 GHz (High-Res) Rear Display Bezel Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 2
PowerBook G4 Aluminum 17" 1.67 GHz (High-Res) Rear Display Bezel Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace a damaged rear display bezel.

  1. miPJPIdYsPm5F4Pc
    miPJPIdYsPm5F4Pc
    D2CRrTJfuELoXHrX

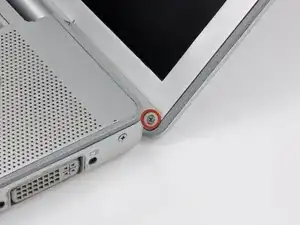

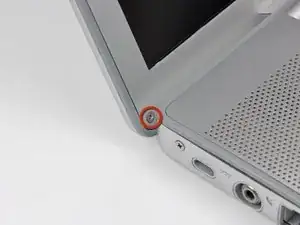

    • Remove the two 6.3 mm Phillips screws near the lower left and right corners of the display.

    • Removing these two screws may be difficult. It is helpful to open the display as much as possible for clearance to use a screwdriver. Also, a combination of #00 Phillips and small flathead screwdrivers along with a pair of tweezers may aid in removal.

    It is much safer to follow the instructions for removing the entire display (PowerBook G4 Aluminum 17" 1-1.67 GHz Display Replacement) before removing these screws by bending the display beyond its tolerances.

    amatuer6 -

    I've already spent 30 mins trying to remove these screws. DO NOT attempt this unless you have plenty of time to waste. Just take the top case/keyboard off and remove the screen assembly to save yourself a big headache. Thanks for the great site.

    dwoodusa90069 -

  2. wEMyqZbNcUryB52q

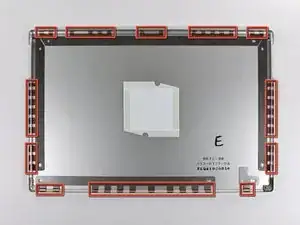

    • The picture at left (rear panel already removed) shows the locations of the metal clips (shown in red) that snap on to the front display bezel. In the next few steps, you will use a small flathead screwdriver to release these clips from a ridge around the perimeter of the front display bezel.

    • When prying in the following steps, be sure not to damage the antenna cables that run around the perimeter of the front display bezel.

  3. CNZfHNKCIrtFWGMB
    CNZfHNKCIrtFWGMB
    iOugZBZ4NRHlTmkq
    R3E2lxtHM2SMibd2

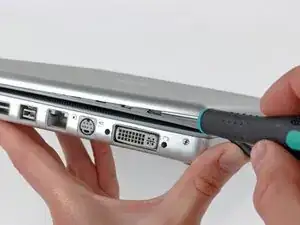

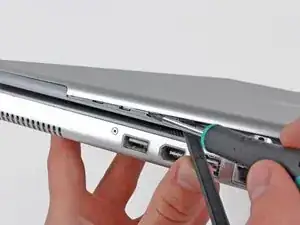

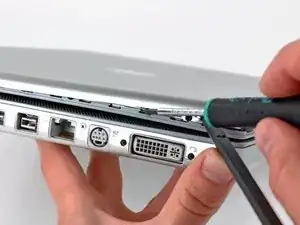

    • Insert the flat end of a spudger between the rear display bezel and the plastic rim attached to the front display bezel near the lower right corner of the display.

    • Do not try to insert the spudger between the front display bezel and its plastic surround.

    • While carefully prying the rear display bezel away from the display assembly, use a small flathead screwdriver to pry the small steel clip nearest the bottom right corner of the display away from the edge of the front display bezel.

    • Repeat the above procedure until you've released all the clips along the right side of the display.

  4. IsRYvAjxOBRiQdey

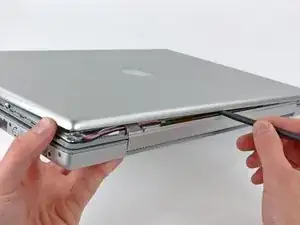

    • Slightly lift the recently-freed corner of the rear display bezel to separate the clips with a spudger along the span of the clutch hinges.

  5. 6htqfmg2uHsW1FRm
    6htqfmg2uHsW1FRm
    MIyHKP3hUDEWdQ6v

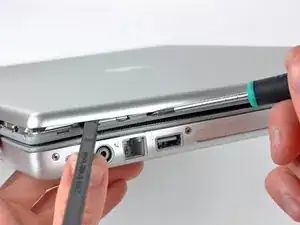

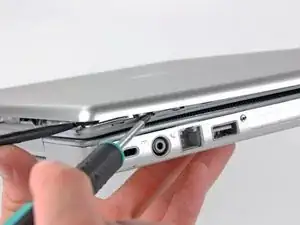

    • Insert the flat end of a spudger between the rear display bezel and the plastic surround of the front display bezel near the lower left corner of the display.

    • Carefully pry the rear display bezel away from the front display bezel to expose the metal clips along the left side of the display.

    • Repeat the previous procedure to release the clips along the left side of the rear display bezel.

  6. UyKpeaId1tdACH1I
    UyKpeaId1tdACH1I
    qhpSHBBb1kxmOUIr

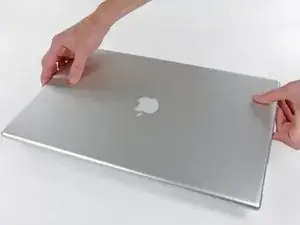

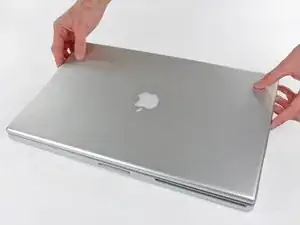

    • Slightly lift the lower edge of the rear display bezel and push it toward the top edge of the display, releasing the clips along the top edge of the rear display bezel.

    • Remove the rear display bezel and set it aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
