PowerBook G4 Titanium DVI Latch Replacement

Geschrieben von: iRobot
  • Kommentare: 5
PowerBook G4 Titanium DVI Latch Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Latch mechanism located in the upper case.

  1. tNBNOLkD3UDwOtbO
    tNBNOLkD3UDwOtbO
    uYrrEZVX3TlDODTr

    • Locate the battery release tab on the underside of the G4.

    • Slide the battery release tab to the left and lift the battery out of the computer.

  2. SxLSLYvmaUD4uLLq
    SxLSLYvmaUD4uLLq
    eFWgR2YqfotOnQE1

    • Remove the seven T8 Torx screws from the lower case.

    • Using your thumbs, slide the lower case toward the front of the computer.

    • The lower case may stick in the front on a tab just above the center of the optical drive. Be careful as you work the case off, or you may break the thin strip of plastic just above the drive.

    • Lift the lower case off.

  3. txWwZJhxVbNRVDSX

    • Disconnect the hard drive ribbon from the logic board using a spudger or the tip of your finger.

  4. NStLDQIgn4Hay4gq

    • To free the hard drive, remove the two T8 Torx screws from the right wall of the battery housing.

    I suspect you are meant to remove the two T8 Torx screws holding down the drive retaining bar on the other side of the hard drive. Once the bar is removed, the drive will pivot out without having to touch the screws on the battery housing wall side.

    John Hagan -

    I agree with John Hagen. The correct way to remove the hard drive is to remove the two T8 Torx screws and drive retaining bar, then lifting the hard drive up on the side by the optical drive . This will prevent a lot of frustration, and potential damage to the plastic shield underneath the hard drive and the rubber bumpers over the hard drive screws.

    John Nakai -

    Yes, this is totally better than removing the hard drive screw on the left side of the hard drive as instructed.

    Anthony -

  5. 2KUyFQJuaSTa3lky

    • Remove the hard drive by lifting the left edge up and out of the computer.

    • There are four rubber bumpers that fit over the hard drive screws. Ensure that these bumpers come out when you remove the hard drive.

    The hard drive can be removed with its bumpers intact, by just taking off the black plastic clamp to its right. Reinserting the drive is also vastly easier when done this way.

    ratiocination -

  6. ZKZJMOg1JPEOCeSu

    • Your laptop should look approximately like this.

  7. NPvbVWONew4Pyjyv

    • Use your thumbnails to push in and then lift the two fingers of the latch clip over the restraining bar.

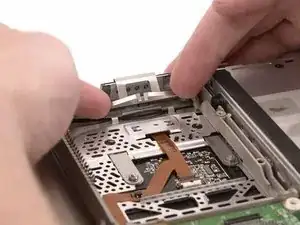

  8. uEFUF5I6VFbT2WyD

    • Now use your index fingers' nails to pull at the "elbows" of the clip, rotating it upward approximately 90 degrees, or until the latch pops out

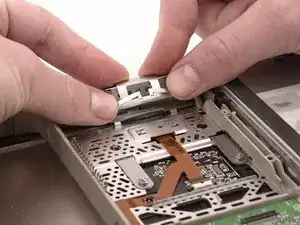

  9. iCJWubIKJceRHFxQ

    • Insert the new latch by rotating the clip up and pushing the latch into place. Then rotate the clip back down, pushing in at the area where the clip bends around the latch. Make sure to insert the clip fingers back into their slots.

    Because there’s a magnet in the latch button assembly, small bits of anything ferrous that fell apart inside the laptop have a tendency to get stuck in the mechanism. I thought I needed to replace a latch because it appeared was broken; instead, when I disassembled it, a couple of hunks of metal bits came out. Then, when reassembled, it worked perfectly!

    John Hagan -

Abschluss

To reassemble your device, follow these instructions in reverse order.
