Einleitung

Easily upgrade to a fast 8x SuperDrive.

  1. tNBNOLkD3UDwOtbO
    tNBNOLkD3UDwOtbO
    uYrrEZVX3TlDODTr

    • Locate the battery release tab on the underside of the G4.

    • Slide the battery release tab to the left and lift the battery out of the computer.

  2. SxLSLYvmaUD4uLLq
    SxLSLYvmaUD4uLLq
    eFWgR2YqfotOnQE1

    • Remove the seven T8 Torx screws from the lower case.

    • Using your thumbs, slide the lower case toward the front of the computer.

    • The lower case may stick in the front on a tab just above the center of the optical drive. Be careful as you work the case off, or you may break the thin strip of plastic just above the drive.

    • Lift the lower case off.

  3. txWwZJhxVbNRVDSX

    • Disconnect the hard drive ribbon from the logic board using a spudger or the tip of your finger.

  4. NStLDQIgn4Hay4gq

    • To free the hard drive, remove the two T8 Torx screws from the right wall of the battery housing.

    I suspect you are meant to remove the two T8 Torx screws holding down the drive retaining bar on the other side of the hard drive. Once the bar is removed, the drive will pivot out without having to touch the screws on the battery housing wall side.

    John Hagan -

    I agree with John Hagen. The correct way to remove the hard drive is to remove the two T8 Torx screws and drive retaining bar, then lifting the hard drive up on the side by the optical drive . This will prevent a lot of frustration, and potential damage to the plastic shield underneath the hard drive and the rubber bumpers over the hard drive screws.

    John Nakai -

    Yes, this is totally better than removing the hard drive screw on the left side of the hard drive as instructed.

    Anthony -

  5. 2KUyFQJuaSTa3lky

    • Remove the hard drive by lifting the left edge up and out of the computer.

    • There are four rubber bumpers that fit over the hard drive screws. Ensure that these bumpers come out when you remove the hard drive.

    The hard drive can be removed with its bumpers intact, by just taking off the black plastic clamp to its right. Reinserting the drive is also vastly easier when done this way.

    ratiocination -

  6. ZKZJMOg1JPEOCeSu

    • Your laptop should look approximately like this.

  7. OTAZldVZjrbQRhGM

    • Disconnect and remove the indicated orange ribbon cable.

  8. DZEyJ5lB1IWapGGm

    • Disconnect the pink and white inverter cable from the inverter board.

    • The display inverter has orange plastic shielding around it that looks similar to the tape used elsewhere within the computer. Do not remove the shielding from the inverter.

    The pink and white inverter cable connection to the inverter board is very tight. Grasp the notch on the right side of the white connector with needle nose pliers and gently wiggle and pull it out of the socket.

    Sugar Fish -

  9. HphsPImCZuARnDXx

    • Remove the two silver T8 Torx screws from the black plastic bar.

    • Lift the black plastic bar out.

    • Reassembly will be significantly easier if you reseat the hard drive before returning the black bar to its place.

  10. BExuesgmaFoEdLti

    • Disconnect the two orange connectors from the logic board, removing tape as necessary.

  11. cugcwPLq2VaBhLSX

    • Lift the drive up on the right side so that you can access and disconnect the modem cable and inverter cable.

  12. XSWVgUWtXjuVuj3w

    • Remove the drive by lifting the right edge up and out of the computer.

    During reassembly, make sure pink and white inverter cable with white plug does not get trapped under the edge of the drive unit.

    einar3888 -

  13. V61bxXYRIVygJOsO

    • Remove the 4 T6 Torx screws securing the modem and inverter boards to the optical drive.

    • Lift the inverter board off of the optical drive.

    • Lift the modem off of the optical drive, carefully guiding the orange cable through the metal mounting bracket.

  14. g3m2EeKVPYig6cZv

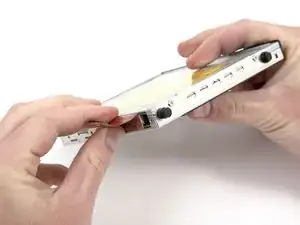

    • Disconnect the orange optical drive ribbon from the back of the drive.

  15. TmlgL63OAQvxIGV1

    • If your new optical drive already has a bracket and bezel for your model, then you are done.

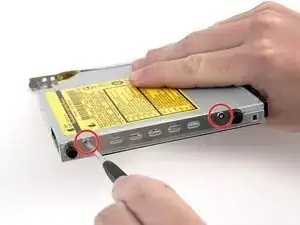

    • Remove the 2 Phillips screws from the side with the longer bumper.

    • Remove the bracket from the optical drive.

  16. RQPkaqWpWXGMeIcV

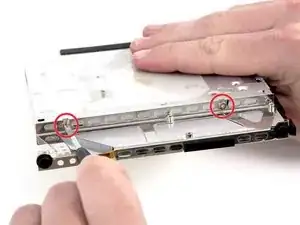

    • Remove the 2 Phillips screws from the other side of the optical drive.

    • Remove the bracket from the optical drive.

  17. hWejwTohuYVDWieo

    • Depending on the new drive's model, the bezel on your old drive may not transfer to the new one. The bezel is not strictly necessary, and the drive will probably work fine without it, but you should transfer it if you can in order to ensure proper alignment with the case.

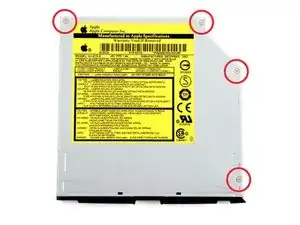

    • Remove the 4 Phillips #00 screws from the top of the optical drive.

  18. KfUvMNDLCNyTsg1B

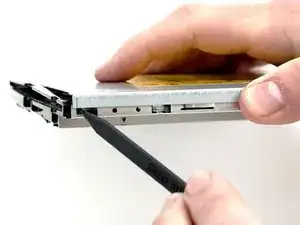

    • Lift up on the thinner edge of the optical drive so that you can access and depress the recessed black tab using a spudger.

  19. CRDnQIUh62mYaVhg

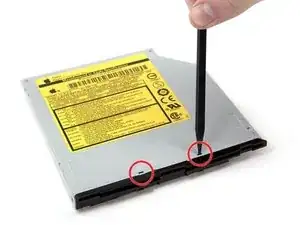

    • Use a spudger to depress and release the two black tabs on top of the optical drive directly over the bezel.

  20. NjyDHGlZmQBVHWUq

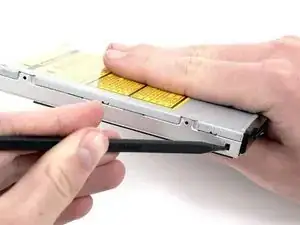

    • Use a spudger to depress and release the black tab on the left side of the optical drive.

  21. jSmTK14LwhiXmtRe

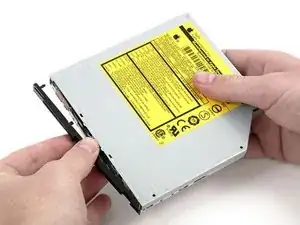

    • Carefully remove the bezel from the optical drive, minding the two plastic tabs on the bottom, which may catch.

    • If you have a CD or any other object jammed in your optical drive, we have an optical drive repair guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
