Einleitung
The time and date, as well as other settings, are kept by the PRAM battery when your machine is off.
Werkzeuge
Ersatzteile
-
-
Locate the battery release tab on the underside of the G4.
-
Slide the battery release tab to the left and lift the battery out of the computer.
-
-
-
Remove the seven T8 Torx screws from the lower case.
-
Using your thumbs, slide the lower case toward the front of the computer.
-
The lower case may stick in the front on a tab just above the center of the optical drive. Be careful as you work the case off, or you may break the thin strip of plastic just above the drive.
-
Lift the lower case off.
-
-
-

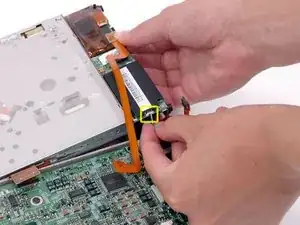

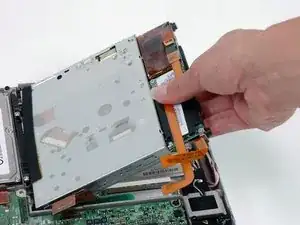

Disconnect the orange optical drive, modem and inverter cables from the logic board, removing tape as necessary.
-

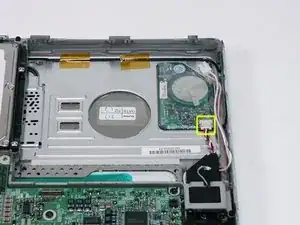

Disconnect the two-wire pink and white inverter cable from the inverter board.
-
-
-

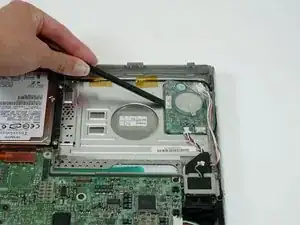

Use a spudger to pry the PRAM battery out of its housing on the upper case. Make sure not to bend the PRAM battery too much while prying it out.
-
To reassemble your device, follow these instructions in reverse order.
