PowerBook G4 Titanium Mercury Modem Replacement

Geschrieben von: iRobot
  • Kommentare: 2
PowerBook G4 Titanium Mercury Modem Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

Keine Schätzung

Einleitung

56k internal modem, standard on all models.

  1. M1b3BVRMAIsoHMDF

    • Remove the battery.

    • Turn the keyboard locking screw so that it is parallel to the space bar.

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

  2. VAtdfjAHsBXf5SPK

    • Rest the keyboard face down on the trackpad area.

    • Disconnect the keyboard connector from the logic board.

  3. NAmMxpOPsLmObRRv

    • Your laptop should look approximately like this.

  4. HCNWmgdvbQ5rPor2

    • Release the tabs on each side of the RAM chip at the same time. These tabs lock the chip in place and releasing them will cause the chip to "pop" up.

    • Pull the RAM chip out.

    • Repeat this process if a second RAM chip is installed.

    • Turn the G4 over.

    • Remove the eight Phillips screws from the lower case.

  6. 3Z2bTPhqrVEAnvc4

    • Using your thumbs, slide the lower case away from you.

    • The lower case may stick in the front on a tab just above the center of the DVD drive. Be careful as you work the case off, or you may break the thin strip of plastic just above the drive.

    • Lift the lower case off.

    Please do steps 7 and 8 before you do 5 and 6, because opening the lid without the bottom plate screwed in place easily breaks the plastic around the powerbook as it is pretty fragile after 20+ years. Mine broke even further as it already hat started an to get the bottom top screws back on I had to flip open the display, beg for it not to fall off and let it hang over my table, so the stress from the hinges would be released. It all fit back together, but is broken more than before, changing the PRAM battery (it’s under the dvd drive) went well and the laptop finally turned on again :)

    Jonathan Voß -

  7. 1pZLWuxxG6OxAwE4

    • Your laptop should look approximately like this.

  8. YMLsWmeYNSmSGA5s

    • Disconnect the hard drive ribbon from the logic board using a spudger or the tip of your finger.

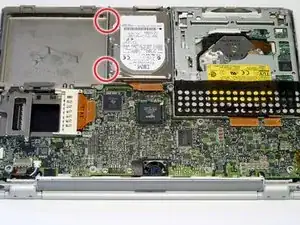

  9. GFLC5rPyT2HIXELh

    • To free the hard drive, remove the two T8 Torx screws from the right wall of the battery housing.

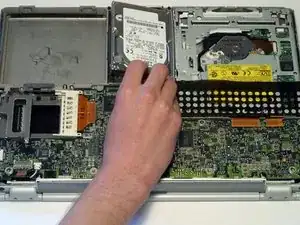

  10. QBaSNcTnfwQ6yMbN

    • Remove the hard drive by gently grasping the orange ribbon cable and lifting the left edge up and out of the computer.

    • There are four rubber bumpers that fit over the hard drive screws. Ensure that these bumpers come out when you remove the hard drive.

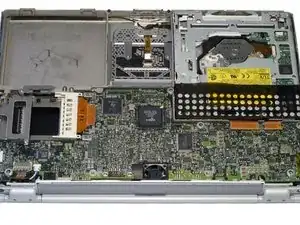

  11. o2Hr6AOEDHBhNx41

    • Your laptop should look approximately like this.

  12. bJtSlIIdPERMXF4M

    • Before continuing, place a soft cloth on your work surface to rest the computer on. Turn the G4 over, making sure the DVD drive doesn't fall out.

    • Carefully peel the adhesive strip away from the DVD drive. The plastic dust shield covering the DVD drive is easily damaged. Try to start at the four corners and work toward the center.

  13. Xal3PWcRlcLQER65

    • Bend the silver metal EMI clip so that it is vertical. This part may fall out after removing the DVD drive.

    • The EMI clip is not essential for reassembling the computer. If the clip falls out, don't worry about putting it back in.

  14. BM4vx13NEIZO4FdX

    • Turn the G4 over.

    • Disconnect both orange ribbon cables from the logic board using a spudger or the tip of your finger.

  15. bsUy3B1r3iZhH3NL

    • Remove the DVD drive by lifting the right edge up and out of the computer.

    • If you have a CD or any other object jammed in your optical drive, we have an optical drive repair guide.

  16. X5PsqLZXC6JqFELJ

    • Turn the G4 over.

    • Using a 5 mm nut driver or needle-nose pliers, remove the hex nut from the modem.

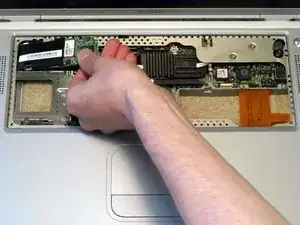

  17. gF3lu6wSGfI1IQkv

    • Lift the modem out by pulling up and to the right.

    • The plastic shielding on the modem may catch on the computer's case. Rocking the modem from side to side will help free the modem.

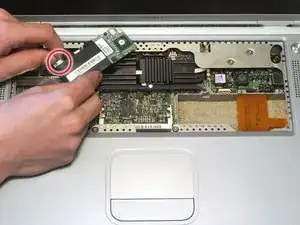

  18. QsLJjmHraRJIxI1c

    • Disconnect the connector cable from the modem.

Abschluss

To reassemble your device, follow these instructions in reverse order.
