PowerLead Puto PLD003 Lens Replacement

Slide the battery eject button open to release the battery door.

With the battery door open, carefully remove all four 5 mm Phillips #1 screws.

Rotate the camera so that the underside is facing up.

Remove the four 5 mm Phillips #1 screws.

Place the camera on a flat surface, with its underside facing you.

Gently pull up on the side panel to remove it from the camera.

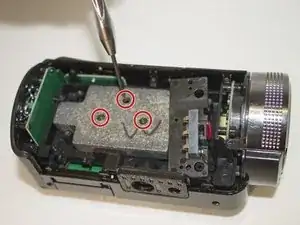

Remove the three 4 mm Phillips #1 screws holding the weight.

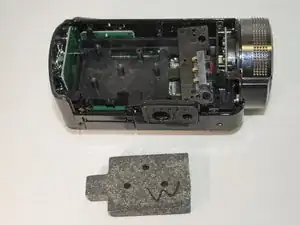

Remove the weight.

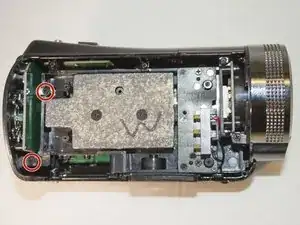

Remove the two 4 mm Phillips #1 screws holding the back panel in place.

Apply pressure to the back panel (away from the camera) to remove.

Set aside back panel for now.

Remove the final 4 mm Phillips #1 screw holding the screen in place. It is very small and hard to see.

Carefully apply pressure, away from the camera, to the screen to detach it from the body.

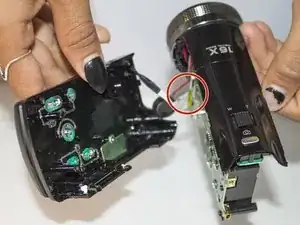

The white cord should still be connected to the body.

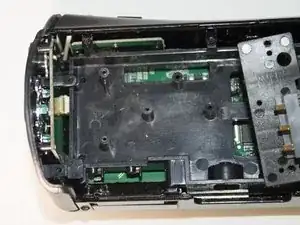

OPTIONAL: Remove the screen to make accessing the lens easier

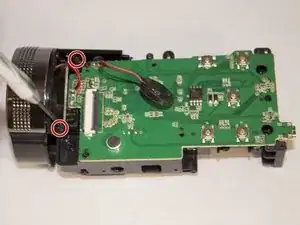

Unscrew the two 4 mm Phillips #1 screws holding onto the lens casing

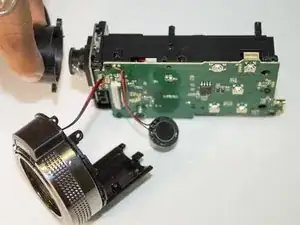

Pull forward on the lens casing to remove it. The cord connecting the light to the motherboard should still be attached.

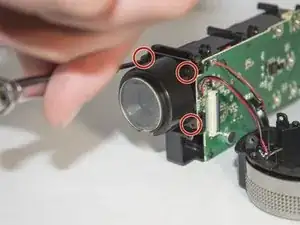

Unscrew the three 4 mm Phillips #1 screws holding the plastic lens holder.

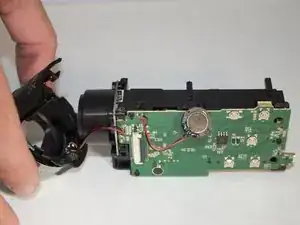

Remove the plastic lens holder.

Push the lens out of the plastic casing from the back.

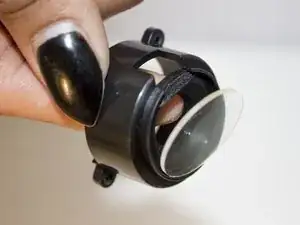

Insert new lens into the plastic casing.
