PowerLead Puto PLD003 Zoom Button Replacement

Geschrieben von: Justin Tew
  • Kommentare: 0
PowerLead Puto PLD003 Zoom Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

This guide shows how to remove the side panel from the camera, how to remove the back panel, and how to replace the zoom button.

  1. XyRHeHJxnwPRleEy

    • Slide the battery eject button open to release the battery door.

  2. Ea3Ef2khOWbPZiJD

    • With the battery door open, carefully remove all four 5 mm Phillips #1 screws.

  3. GCCxAR3arAcRJbYL

    • Rotate the camera so that the underside is facing up.

    • Remove the four 5 mm Phillips #1 screws.

  4. BTKFTPjpSFd2M4dp

    • Place the camera on a flat surface, with its underside facing you.

    • Gently pull up on the side panel to remove it from the camera.

  5. iPcsfjdMkMU2DNuU
    iPcsfjdMkMU2DNuU
    xBbNBuAgc2FjW5xc

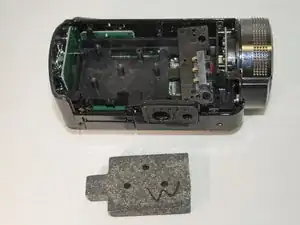

    • Remove the 4 mm Phillips #1 screws holding the weight.

    • Remove the weight.

  6. qWJGFjUKMesAE5Cn

    • Remove the two 4 mm Phillips #1 screws holding the back panel in place.

  7. 5F4EEMKTEqIvrRPp

    • Apply pressure to the back panel, pulling away from the camera to remove it.

  8. IgdCVwNiDWGUtK6q
    IgdCVwNiDWGUtK6q
    YGdBtVD5NRXcBTNm

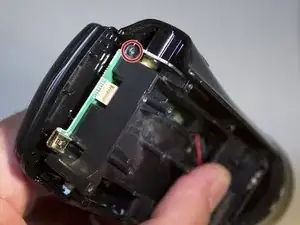

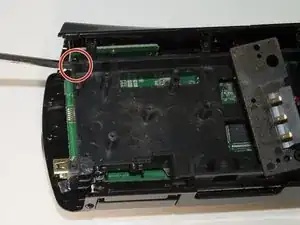

    • Remove the final 4 mm Phillips #1 screw holding the screen in place.

    • This screw is very small and hard to see.

  9. 15GUOro4hyywMTWf

    • Carefully apply pressure away from the camera to the screen to detach it from the body.

    • The white cord should still be connected to the body.

    • OPTIONAL: Remove the screen to make accessing the zoom button easier.

  10. i6nbikavHkYSDqaI

    • Remove the three 4 mm Phillips #1 screws holding the top panel in place.

  11. dRVsNFKvhXKSKKwR
    dRVsNFKvhXKSKKwR
    VjOCWJRZFMnjMCJX

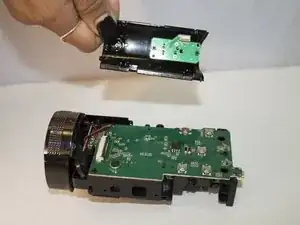

    • Push upward on the top panel to remove it from the body of the camera.

  12. oBNvmZwqcFSW6upP
    oBNvmZwqcFSW6upP
    ulpdWBD4BXQHtjUr

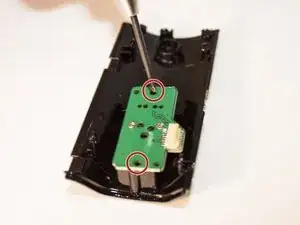

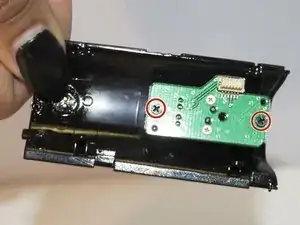

    • Remove the two 4 mm Phillips #1 screws holding the circuit board in place.

    • Do not remove the silver screws.

  13. FwLQxyy3pYWSeM6f

    • Lift the circuit board out of the plastic casing.

    • Gently pull on the zoom button to remove it from the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
