PowerShot G7 X Mark II Front Cover Replacement

Geschrieben von: Brandon

Kommentare: 11

PowerShot G7 X Mark II Front Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

40 - 55 Minuten

Einleitung

This guide will show you how to replace the Front Panel and Focus Ring of the camera if it is damaged or if the lens has gotten dirt lodged in it.

Werkzeuge

Schritt 1

Use a Phillips #000 screwdriver to remove four 4mm screws from the NFC panel cover on the bottom of the camera.

Schritt 2

Use a Phillips #000 screwdriver to remove five 3mm screws from under the LCD screen.

Schritt 3

Use a Phillips #000 screwdriver to remove one 3mm screw on the left of the camera.

the other screw (on the top) must be removed too

oluc - 14/06/19

Schritt 4

Use a Phillips #000 screwdriver to remove one 3mm and one 4mm screw on the surface of the right face of the camera, and one under the USB/HDMI cover.

Schritt 5

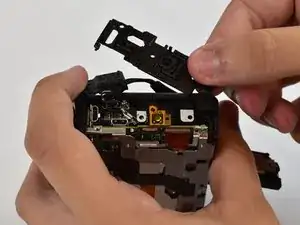

Carefully remove the back cover off of the camera by hand, minding the ribbon cable attached to the camera body. If the cover does not detach, use a spudger to pry it off.
Use the spudger tool to open the ZIF connector attaching the ribbon cable to the camera body.

about ZIF connectors Erkennen und Trennen von Kabelverbindern

oluc - 14/06/19

Schritt 6

Use a Phillips #000 screwdriver to remove two 3mm screws on the pop-up flash.

and unclip the top hat of the pop-up flash, then push the flash back in place.

This is needed to be able to remove completely the top cover.

oluc - 15/06/19

Schritt 7

Use a Phillips #000 screwdriver to remove two 2mm screws attaching the button panel to the camera body.
Use a Phillips #000 screwdriver to remove a 3mm screw from beneath the mode dial.

Schritt 8

Open the battery compartment and remove the battery by flipping the small latch holding it in.
Use a Phillips #000 screwdriver to remove one 6mm screw in the bottom of the battery compartment.

Schritt 9

Pry the top cover button assembly off of the camera body by detaching clips around the base of it.

first, detach the ZIF connector

oluc - 14/06/19

be careful when detaching the top cover : there's a small metallic part that is loose and will fall.

This part is a ~10mm bent metal strip, with a screw hole.

When in place it holds with the long screw from the battery compartment (step 8)

oluc - 15/06/19

hi can u please help me remove the dial wheel on the upper cover. mine become stuck and i am hoping that you could help me fix it.. thankyouu

keith. -

please do a tutorial on how to remove the dial wheel on upper cover..

keith. -

Schritt 10

Use a Phillips #000 screwdriver to remove two 3mm screws on the left and one 5mm screw on the right from the front panel.

I got

- two 4mm screws on the left (golden-ish)

- one 3mm screw on the right (silver)

(rather than “two 3mm and one 5mm”)

oluc - 16/06/19

Schritt 11

Remove the USB/HDMI panel from the right side of the camera.

Schritt 12

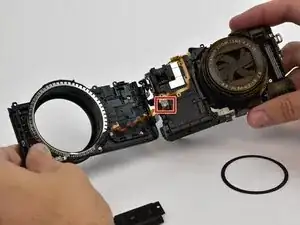

Separate the front cover and focus ring assembly from the front of the camera. Use a plastic spudger to detach the ZIF connector holding the ribbon cable connected to the focus assembly.

That ZIF connector in step 12 was really hard to detach so I think I broke one of those little holders for it. Is there any replacement ribbon with those holders? What are my options?

Bartol Filić - 11/10/18

actually it's not a ZIF connector, so don't try to pull/push the grey “box”, you'll break it.

It's a basic connector/socket : just gently pull the ribbon.

you can see it for example (at 7”20’)

https://www.youtube.com/watch?v=v0vso3CI...

oluc - 16/06/19
