Einleitung
These instructions tell you how to take apart the Presto coffee maker and recover pieces such as two 4349806 Thermal Switches, a small heating wire, and some short wires with spade connectors. The deconstruction guide is easy to follow and only two tools are recommended, a Phillips #2 screwdriver and needle-nose pliers. The only hazard is to be careful of thermal paste when removing the Thermal Switches.
Werkzeuge
-
-

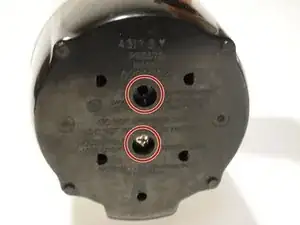

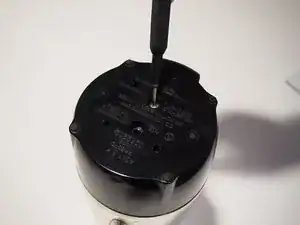

Using the Phillips #2 screwdriver, remove the bottom two 25 mm screws off of the coffee percolator.
-

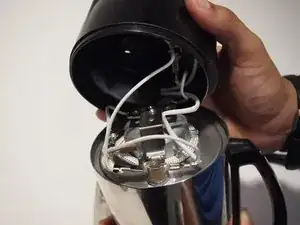

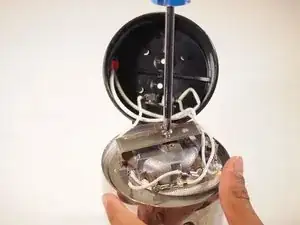

Lighty remove the bottom of the coffee percolator.
-
-
-

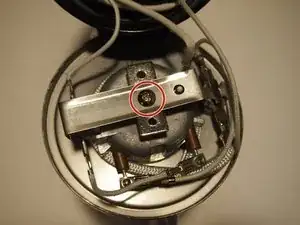

Using the Phillips #2 screwdriver, remove the center 10.8 mm screw holding in the metal strip.
-

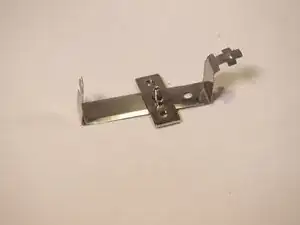

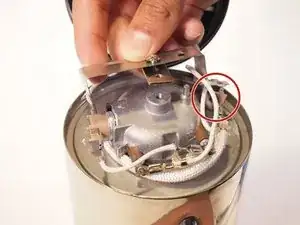

Take off the metal strip.
-
-
-

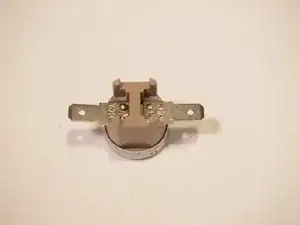

Lightly remove the right (bottom facing) thermal switch from its thermal paste.
-

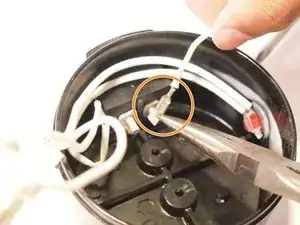

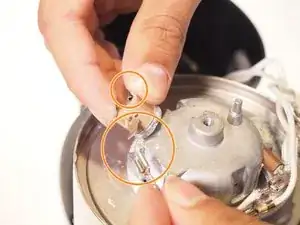

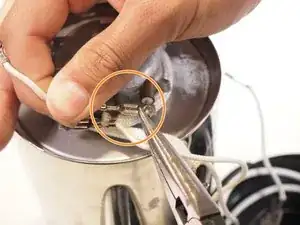

Using your small needle-nose pliers, take off the spade connectors connected to the thermal switch.
-
-
-

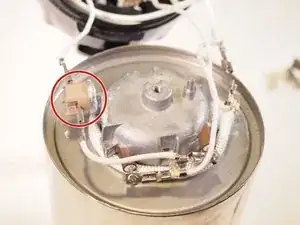

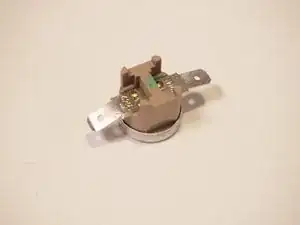

Lightly remove the left (side facing) thermal switch from its thermal paste.
-
Using your small needle-nose pliers, take off the spade connectors connected to the thermal switch.
-
-
-

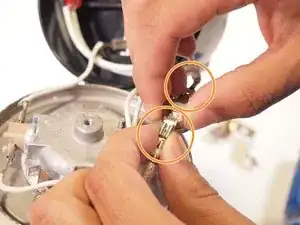

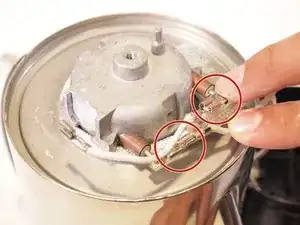

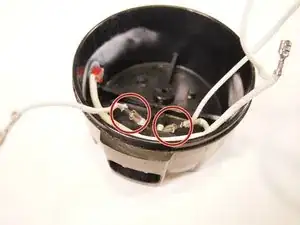

Remove the two spade connectors connected to the heating element.
-
The easiest way to do this is to hold the heating element end with the pliers and tug the spade connector off.
-
-
-
Remove the two spade connectors connected to the power connector.
-
The easiest way to do this is to hold the power connector end with the pliers and tug the spade connector off.
-

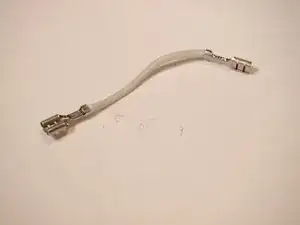

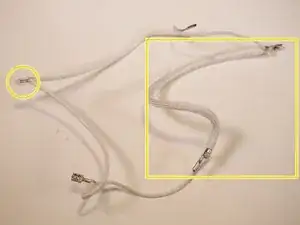

The final wire removed contains the small heating wire (the thick braided wire) and the signal light.
-
To reassemble your device, follow these instructions in reverse order.
