Presto Carpet Extractor 9.840-068.0 2016 Pump Replacement

Geschrieben von: Tarun Thiruma
  • Kommentare: 2
Presto Carpet Extractor 9.840-068.0 2016 Pump Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

20 - 45 Minuten

Einleitung

Follow this guide to remove or replace the pump on your Presto Carpet Extractor 9.840-068.0 (2016).

Be sure to thoroughly clean and dry your extractor before you begin.

  1. LQd2eV5GPXpZNGdw
    LQd2eV5GPXpZNGdw
    j12SLEkYtQqNMTVC
    FJHLQeRiLtoicV2x

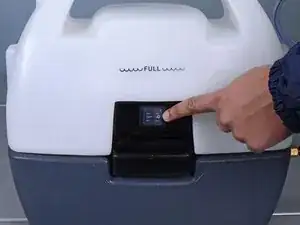

    • Ensure your carpet extractor is unplugged and switched off before starting this procedure.

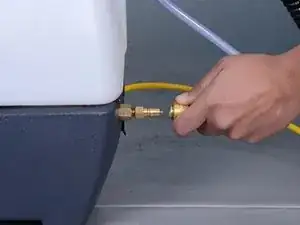

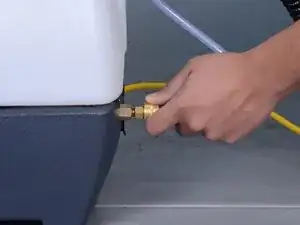

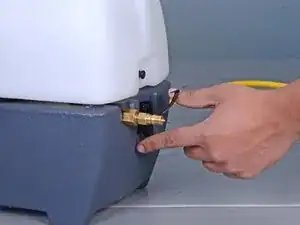

    • If it is still attached, pull and disconnect the brass quick-connect fitting from the carpet extractor body.

  2. JCRmAqlOaxX6PwFm
    JCRmAqlOaxX6PwFm
    c5dLetJedv1nOqgN

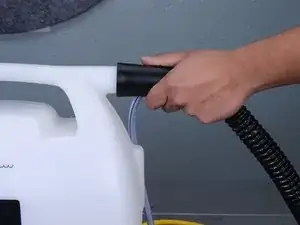

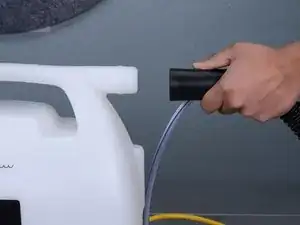

    • If it is still attached, disconnect the black hose from the recovery tank.

  3. WtbGryXhBQ2LJpMx
    WtbGryXhBQ2LJpMx
    aenjcFtBlXEFPtUv
    FAVoALOOPZjsfCnN

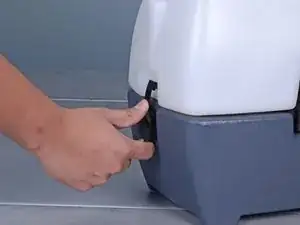

    • Unclasp and release the two black latches on either side of the carpet extractor.

  4. HoVgYqjCipBeBUJA
    HoVgYqjCipBeBUJA
    igdJkLSFxMJTkinV

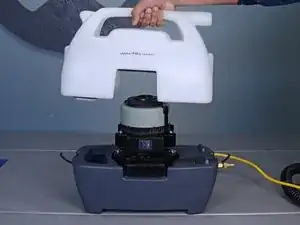

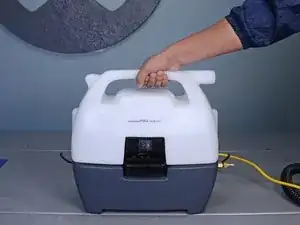

    • Remove the recovery tank.

  5. 3CodNvwmQDcgyADx

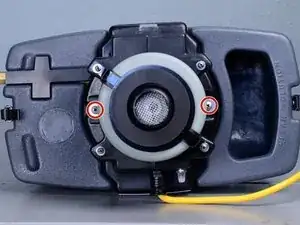

    • Use a Phillips #2 screwdriver to remove the two 1-1/2" screws and washers securing the pump housing.

  6. vYCV1cSGKXGVdMp1
    vYCV1cSGKXGVdMp1
    JlSEGLYg453GERVC

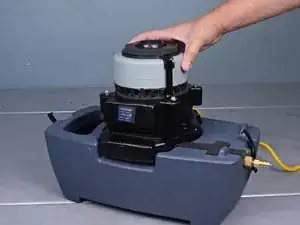

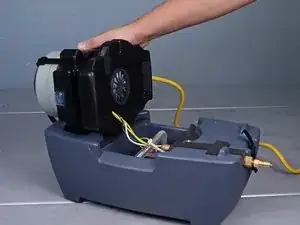

    • Tilt the vacuum motor and pump housing sideways and let it rest on the side of the extractor.

  7. SMiUOjMEClHq1lXM

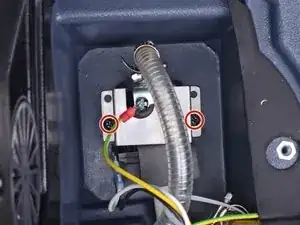

    • Use a Phillips #2 screwdriver to remove the two 1/2" screws and star washers securing the pump mounting bracket.

  8. qTPxGv2UOvWwPJnS

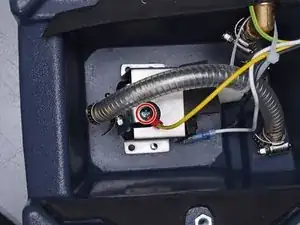

    • Use a Phillips #2 screwdriver to remove the ground terminal screw and star washer from the pump.

  9. LOYKAiCifDtn4ZjA
    LOYKAiCifDtn4ZjA
    mvOZubkfFfWvGxbX
    KUKUpSUC1dLPWCJG

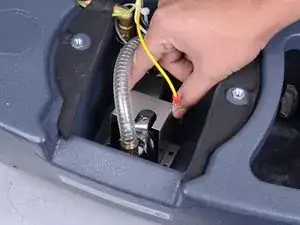

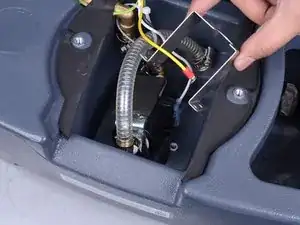

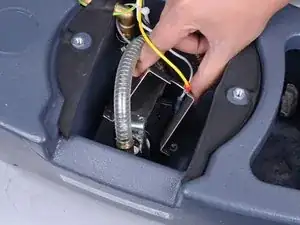

    • Lift and remove the pump mounting bracket.

    • Take care to not snag the sharp edges of the mounting bracket on any wires or hoses as you remove it.

  10. V6BDCAqQDbfmbnBb

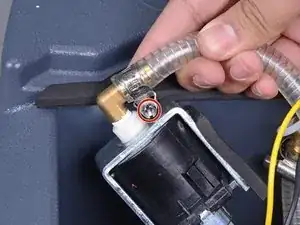

    • Use a flathead screwdriver to loosen the hose clamp on back side of the pump.

    • We strongly suggest you replace this hose clamp during reassembly to prevent leaks during operation.

  11. hFBObJxNnChVSkhG
    hFBObJxNnChVSkhG
    hBm1J5UIjGLMlYDy

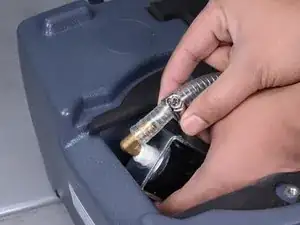

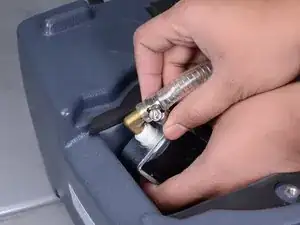

    • Slide the loosened hose clamp back until it is no longer around the brass fitting.

  12. HGG5iMP4VSa4KKUP
    HGG5iMP4VSa4KKUP
    HSJ4KOFyGQp61OGR
    W2wOZRUydPynuTad

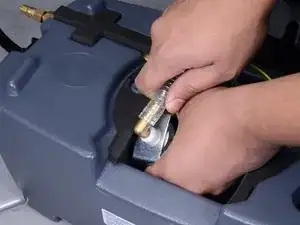

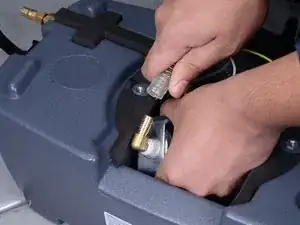

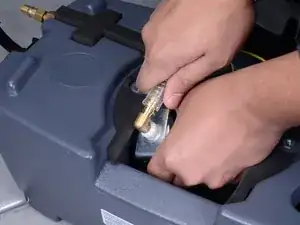

    • Pull the hose straight off of the brass fitting to remove it from the pump.

    • If this is too difficult to do by hand, use a pair of pliers to carefully work the hose off of the fitting until it is free.

    My hose had been there for years, so I used a screwdriver tip between the end of the hose and the brass to loosen it.

    LOREN -

  13. L4bG6MRRoTMMgQsG
    L4bG6MRRoTMMgQsG
    CLtwHV31t5vqFEZe
    W5CAcdQnBSysXtkD

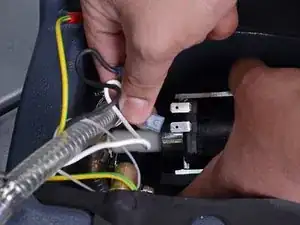

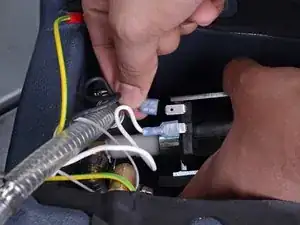

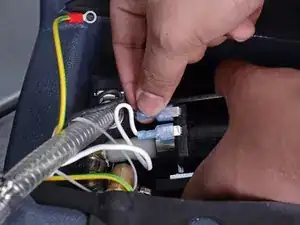

    • Disconnect the two crimp connectors from the pump body.

    • Take note of which wire connects where for reassembly.

    • This may require a significant amount of force; pull and wiggle the connector until it's free.

  14. RPpBjsEsPscfXcCI
    RPpBjsEsPscfXcCI
    Jkw3r6BujbYqImUS
    GVUufE6NxjtiV3Vx

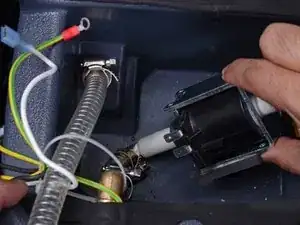

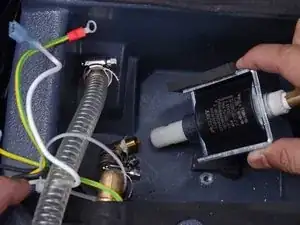

    • Twist the pump body counterclockwise until it is disconnected from the fitting at the other end of pump.

    • Remove the pump from the extractor.

    • Before installing the new pump during reassembly, replace the teflon tape on the brass fitting to prevent leaks during operation.

    On the other end, to remove the brass fitting it is the same, you have to screw the fitting off. Also, the new vacuum pump comes with caps inside the inlet/outlet lines. You have to take those out, which is a little tedious, before screwing the fittings back on.

    LOREN -

  15. wJ6FSP5gPGNs5vCr
    wJ6FSP5gPGNs5vCr
    BypCcqTWTT5gATOd
    pmWkO5SSAKmogYge

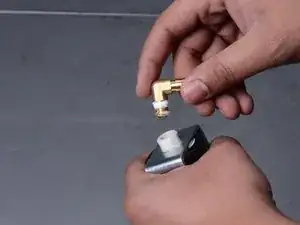

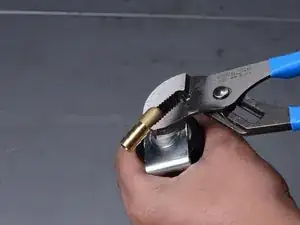

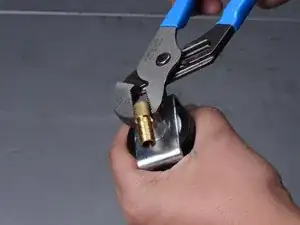

    • Use a pair of pliers to unscrew and remove the remaining brass fitting from the pump.

    • Replace the teflon tape on this brass fitting before installing it into the new pump to prevent leaks during operation.

  16. Wf5xySNHcyeApDey
    Wf5xySNHcyeApDey
    FIOUVTfocIsoTujt
    gc1QknAtOod2L13N

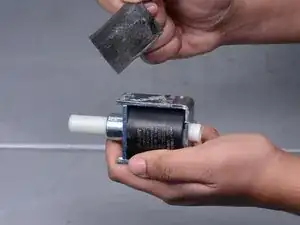

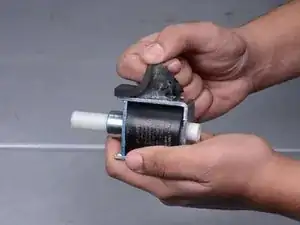

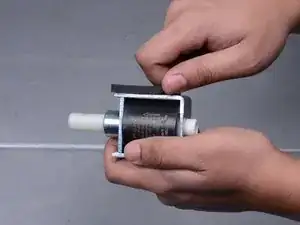

    • Carefully remove the foam pad adhered to the top of the pump body.

    • Keep this foam pad intact so it can be reused on the new pump during reassembly. Apply the pad to the same location on the new pump.

  17. fePE6GZxEDhZPEW4

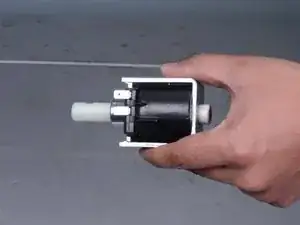

    • Only the pump remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
