Presto PopLite 04820 Popping Chamber Base Replacement

Geschrieben von: Emanuele Rocco
  • Kommentare: 1
Presto PopLite 04820 Popping Chamber Base Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide shows how to replace the Presto PopLite 04820 Popping Chamber base. The Popping Chamber Base may need to be replaced if it has been coated with any popcorn residue that is permanent. Be sure that the PopLite is unplugged from the wall and has had time after use to cool down before working on the device.

  1. U5isUMeeIyRu4hmj

    • Be sure that the popper is unplugged before disassembly.

    • Turn Presto Popper upside down.

  2. 5QMs3lHjstFAuFXY
    5QMs3lHjstFAuFXY
    mNTHxyMSoOI3XWE4
    O2x5Qpls5NZlkRMO

    • Remove the four 9 mm Phillips #2 screws from the base.

    • Once all four screws are removed, take the base off.

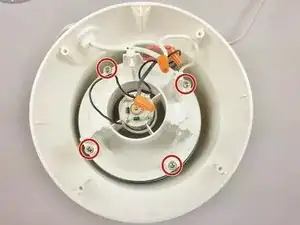

  3. CITRNMMUEJrhTXA2
    CITRNMMUEJrhTXA2
    6BgegJUIdTWIJPhx

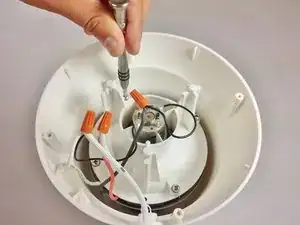

    • Remove the four 13 mm Phillips #2 screws.

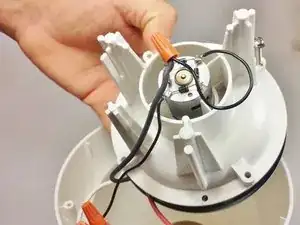

  4. cGsItmENKxZoGKDp

    • Remove the entire cavity that holds the motor from the base of the PopLite.

    • Be gentle while taking the motor out of the base to avoid wire damage.

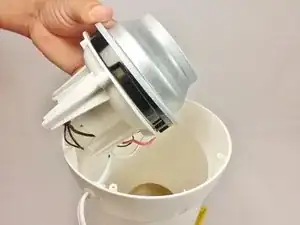

  5. WCUZbGwL4VpXw5vH
    WCUZbGwL4VpXw5vH
    Zw3bjxCu2GikNV4A

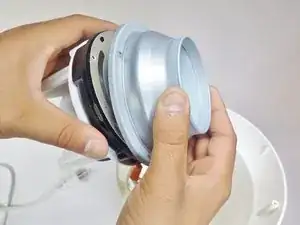

    • Turn the popping chamber base sideways.

    • Now remove popping chamber base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
