ProLine HB25 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

This guide provides the necessary information on fully disassembling the Proline HB25 hand blender.

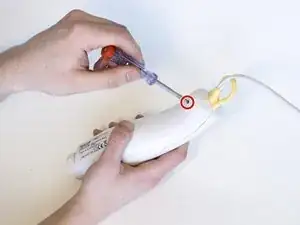

  1. BdIBKtMv3HCCLC4J

    • Unscrew the screw on the back of the product.

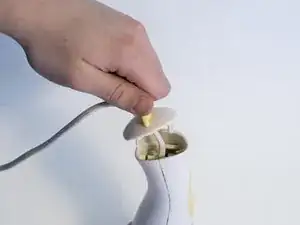

  2. uSKFKhUbhL33RalQ
    uSKFKhUbhL33RalQ

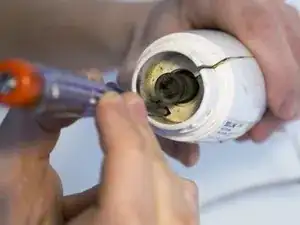

    MuGJoRJdmxAFXog6

    • Pull out the backtab of the housing.

    • Push in the snapfits with, for instance, a screwdriver.

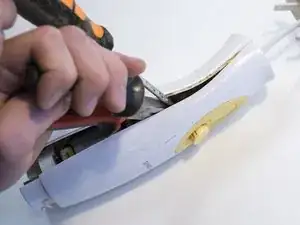

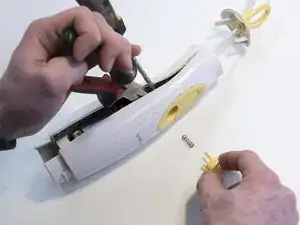

  3. kqrZCIRPBZmxlsCu
    kqrZCIRPBZmxlsCu
    HvOIbdZrAuBd3Dqe

    • Separate the housing with calibrated force.

    • Keep your fingers away from the housing and do not bend or break the housing.

    • Use a flathead screwdriver to push out the lower function button.

    • Remove the separating device.

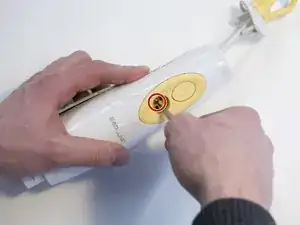

  4. fVFdePfty3cFJJDU

    • Unscrew the hidden screw under the button.

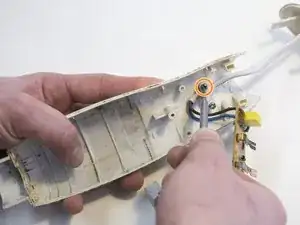

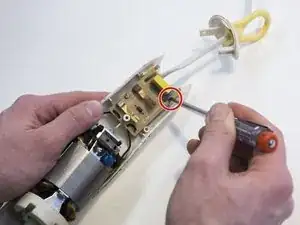

  5. BCYEfSWfonFKcRNU
    BCYEfSWfonFKcRNU
    xldcRXABGSJlEOII

    • Open the housing.

    • Unscrew the circuit board.

    • Unscrew the wire lock.

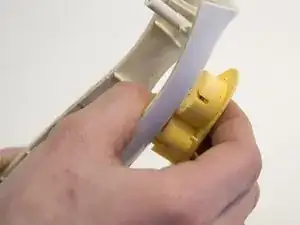

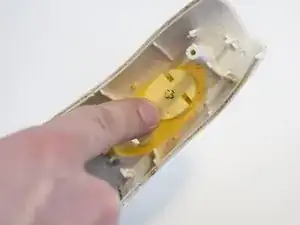

  6. JFYUurjVItMpp6hT
    JFYUurjVItMpp6hT
    EedGuDfuxoRm4SSb

    • Push the housing of the button out of the housing.

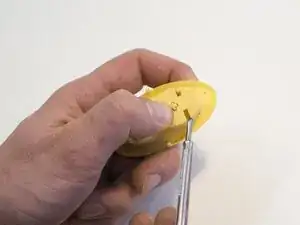

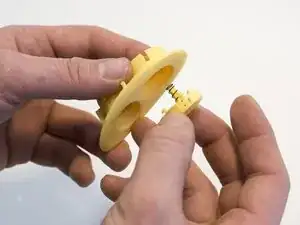

  7. nyYBAOkdJQ1NLExG
    nyYBAOkdJQ1NLExG
    22eWSLsTXJvKBqeB

    • Push on the side of the housing of the button to push the button out of the housing.

    • The spring can jump away when you push out the button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
