ProScan PLT7050 Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

This is the camera replacement guide. If you find the camera of the ProScan PLT 7050 is broken, follow these steps to replace the camera.

  1. XMxCQuQZaUYOJlua

    • Make sure device is unplugged and turned off while working on the device.

    • Remove 2 Phillips head, 4.3 mm screws from the bottom side of the tablet with a PH00 screwdriver.

  2. mhjYYkd1dTGfCUOj

    • Use the plastic opening tools to pry the back of the tablet open.

    • You may need to slide the tool along the sides of the device to get it to open. You might hear some popping noises, it is okay.

    • May be helpful if you start by the microSD slot.

  3. E6XTk2lclyXAQNd6

    • Remove the black tape carefully.

  4. DJ5HPtHeOFalWdDE

    • Use the plastic opening tool to open the ZIF connector tab to release the camera's ribbon cable.

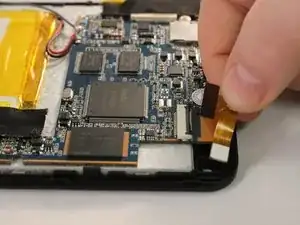

  5. 61TldEGBMaGRuDWR

    • Remove the camera's ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
