ProScan PLT7223G Battery Replacement

Geschrieben von: Nathaniel Girard
  • Kommentare: 4
ProScan PLT7223G Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

If your device will not turn on at all, use this guide to replace your dead or dying battery and make your device functional again.

  1. fyUMWwAgE66ALakY

    • Remove both 4 mm screws on the top of the tablet with a PH00 screw driver.

    there are no screws on my unit ?

    Jesse Sanchez -

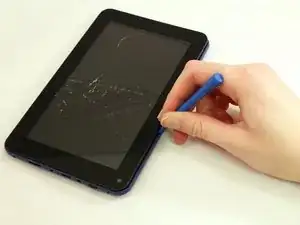

  2. FFiVjZS2nMbSWY4j

    • Use the blue plastic opening tool to pry open the tablet.

    • You will hear popping sounds. That's okay.

    • Be careful when using the blue plastic opening tool on the side of the device near the speakers, as there is a wire here that connects the speakers to the motherboard.

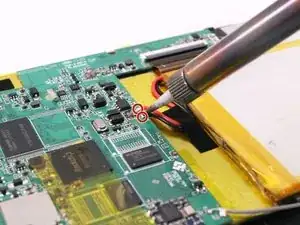

  3. DR4FcxnkLMQtAabd

    • Use a soldering tool and tweezers to remove the black and red wire from the motherboard.

    • Be sure to pay attention to where each wire goes so that you attach them in the correct order when reassembling the device.

    • Soldering tool will get hot, handle with care.

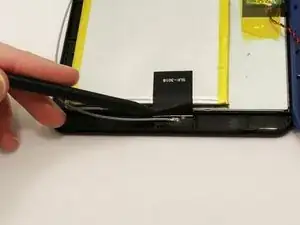

  4. VDjxPusZDnJObvnZ

    • Use a spudger to remove the black tape from the battery.

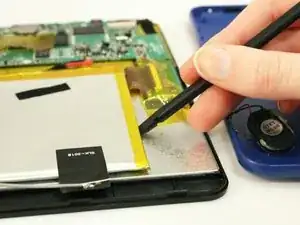

  5. mBbAMHTSNBnFKR4T

    • Using the flat end of a spudger, carefully separate the battery from the base of the device.

    • There is an adhesive holding the charger in place.

    Not as easy as it

    jbouges077 -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Nathaniel Girard

Mitglied seit: 12/01/16

287 Reputation

2 Kommentare

what is the number of the replacement battery??

florcomm -

How will I know if my proscan tablet battery is no good once I remove it

Genica Harmon -
