ProScan PLT7223G Front Facing Camera Replacement

Geschrieben von: Laura Kneeshaw
  • Kommentare: 0
ProScan PLT7223G Front Facing Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

Blurry photos? Camera not working at all? Use this guide to replace the camera.

  1. ShJcgvBtAxHHXQtE

    • Remove both 4 mm screws on the top of the tablet with a PH00 screw driver.

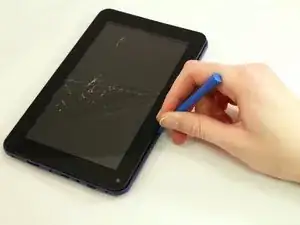

  2. apVkfNSXCQdbsVNB

    • Use the blue plastic opening tool to pry open the tablet.

    • You will hear popping sounds. That's okay.

    • Be careful when using the blue plastic opening tool on the side of the device near the speakers, as there is a wire here that connects the speakers to the motherboard.

  3. Y1sxxPOgVqjgwKuT

    • With a spudger, flip up the ZIF connector that connects the camera's ribbon cable to the motherboard. This will release the ribbon cable.

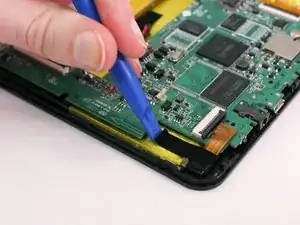

  4. oxjCxbuG1g121NEh

    • Remove the black tape holding down the ribbon cable.

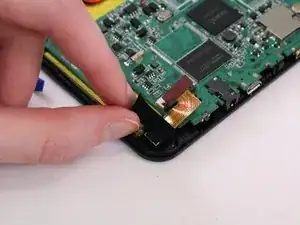

  5. nZGTtpVvjSqOGOyA

    • Remove camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
