ProScan PLT7223G Motherboard Replacement

Geschrieben von: Daniel Hernandez
  • Kommentare: 1
ProScan PLT7223G Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

If your device isn't working and other troubleshooting methods have failed, or a component of the motherboard has failed, use this guide to replace the motherboard and make your device functional again.

  1. Hv2XrCtt6xOLy2IP

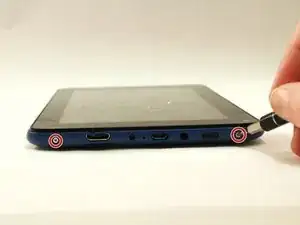

    • Remove both 4 mm screws from the top of the tablet using a PH00 screw driver.

  2. EJxji4YyeRdVVbKY

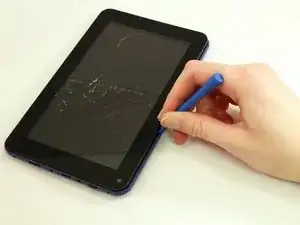

    • Use the blue opening tool to pry the tablet open.

  3. cOOJ5thf3mXmiNY6
    cOOJ5thf3mXmiNY6
    GsmGqRJVbWpgwiV2

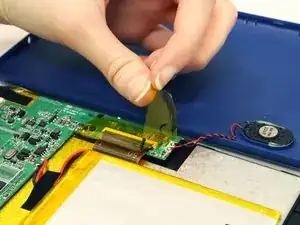

    • Remove all yellow tape from the motherboard.

  4. 1cVjglfHMqLlGRmV
    1cVjglfHMqLlGRmV
    MceI2ZmrQGRGBp4j
    5FheQkLUSls2QjHK

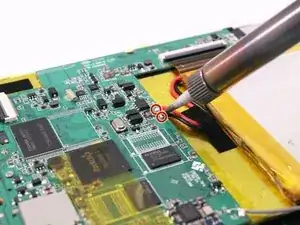

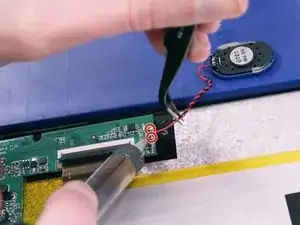

    • With the soldering tool remove the speaker wires, battery wires and gray wire that are connected to the motherboard.

    • Pay close attention to where each wire goes, so that you reconnect them in the correct order.

  5. V3e2SQQPFcFwhyjg
    V3e2SQQPFcFwhyjg
    yDIyOkV4L65f5x56
    NYPfVx4dEDFYflNY

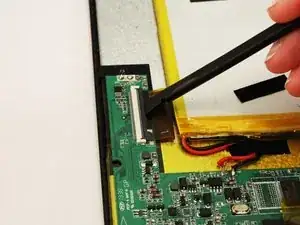

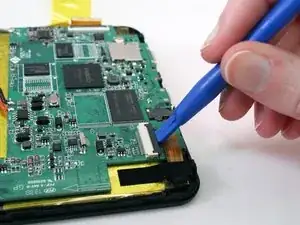

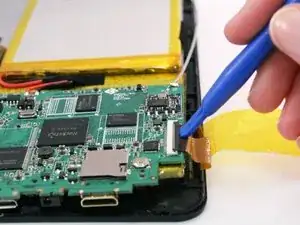

    • Lift all three ZIF connectors to disconnect the ribbon wire.

  6. 6UPVhQcRnFnBMDRa

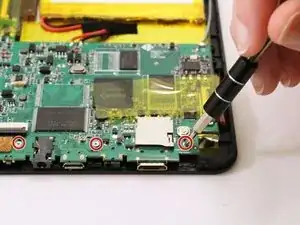

    • Use a PH00 screw driver to remove the three 4 mm screws holding the motherboard down.

  7. gbc4aYxnPSqLhBkr

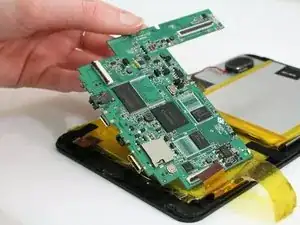

    • Lift the motherboard off the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
