ProScan PLT7223G Screen Replacement

Geschrieben von: Nathaniel Girard
  • Kommentare: 0
ProScan PLT7223G Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your screen is cracked or not working at all, use this guide to replace it.

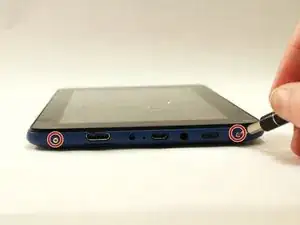

  1. 2X14NFOULxb4mpCH

    • Remove both 4 mm screws on the top of the tablet with a PH00 screw driver.

  2. 4BvVZhTtRwkOj2LP

    • Use the blue plastic opening tool to pry open the tablet.

    • You will hear popping sounds. That's okay.

    • Be careful when using the blue plastic opening tool on the side of the device near the speakers, as there is a wire here that connects the speakers to the motherboard.

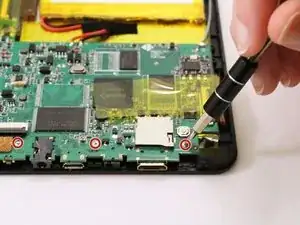

  3. uZNSMegh6fxsMQ2b

    • Remove three 4 mm screws from the motherboard.

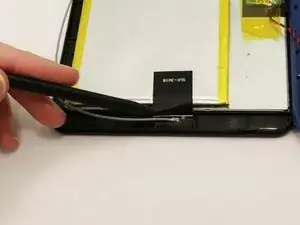

  4. 1GuNSHjkibP2Agf4

    • Insert a spudger under the black tape that connects the silver wire to the interior of the front panel

    • Pull back the black tape with the spudger until it can be lifted up with your fingers.

    • Use your fingers to grab and lift the remainder of the black tape from device panel.

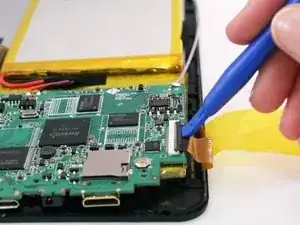

  5. XGwdHnQyPsyxr6aG

    • Use a plastic opening tool to push back the ZIF connector to release the ribbon wire on the motherboard.

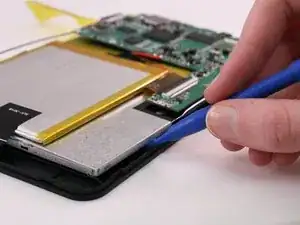

  6. YPQmlJMp22HvwSbW

    • Insert an opening tool underneath the silver base of the internal device element.

    • Use the opening tool to pry the element out of the case that holds the screen.

    • You will need to release a number of clips in order to remove the screen.

    • Be careful not to damage the motherboard or battery as you go.

Abschluss

To reassemble your device, follow these instructions in reverse order.
