Professional Series PS77401 Chassis Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will show how to remove the chassis from a Professional Series PS77401 toaster. The chassis may be damaged from a high height drop and may need replacing to allow even toasting. This guide is not a repair guide and requires a replacement toaster chassis.

  1. ELZ1DomxQtvse1gG

    • Make sure that the toaster is unplugged before attempting any sort of disassembly!

  2. UrSsf3dOcb15LXkE
    UrSsf3dOcb15LXkE
    JxYFJYyqerdaQHrM

    • Grip the black plastic lever nub firmly and carefully remove it from the metal lever. Use one hand to hold the toaster in place while you pull the lever nub with the other.

    • If this is the first time detaching this piece, it will take some effort to remove. Be careful as pulling too hard can cause damage to the inner lever mechanism.

  3. Mrl11nyXAXffOqQj
    Mrl11nyXAXffOqQj
    Ljr2UuFTUg4Y3kDD
    N2Cwy4OdwljLBXW1

    • Flipping the toaster upside down, use a T7 Torx Screwdriver to remove the four 10mm screws that keep the outer shell attached.

    • Flip the toaster back over and slide off the shell making sure to slip the toaster lever (now without the black plastic nub) through the lever opening in the shell.

    • The outer shell should now only be connected by its internal wiring.

  4. cvxUl4WJhKy2iIqx
    cvxUl4WJhKy2iIqx
    4hnZPwEugBZOZC1H

    • Locate and remove the two 8mm screws that attach the circuit board (located inside of the shell) from the shell itself using the Phillips #2 screwdriver.

    • The shell should now be completely separated from the rest of the toaster.

  5. QREJTyyAXGic4q5s
    QREJTyyAXGic4q5s
    ZTpqnvIOxdJlQptU
    bS26adbVAoVLFUL6

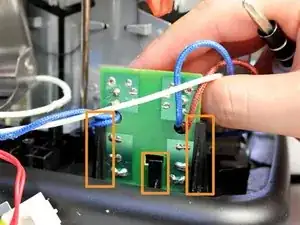

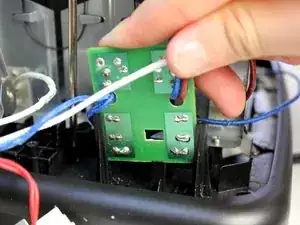

    • Locate the small circuit board attached to the base of the toaster.

    • To remove the circuit board, pull apart the two side tabs while releasing the middle tab simultaneously.

    • Pull the circuit board out of the slot.

  6. iml3KaVXHjQAHL14
    iml3KaVXHjQAHL14
    bFq1YyeUdDUThy2r
    SwABhKUtLVNQuIdN

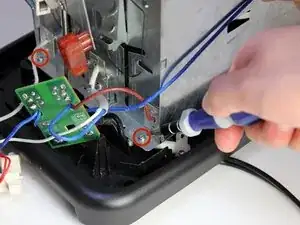

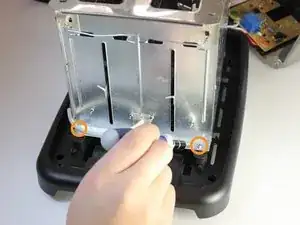

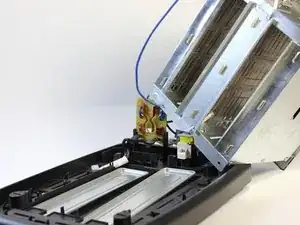

    • Using a Phillips #2 screwdriver, remove the front two 8mm screws attaching the chassis to the base.

    • Flip the toaster around and proceed to remove the two remaining 8mm screws.

    • The toaster chassis should now only be connected to the base via wiring.

  7. DZCUE22TLUrsk1jP

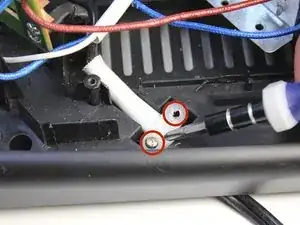

    • There are two phillips 8mm head screws holding the power cable to the base.

    • Remove these screws to release the power cable.

  8. 2SRflUQ51D4Wx1cf
    2SRflUQ51D4Wx1cf
    gcpJqPfFmbOfMuWU

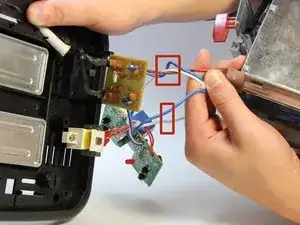

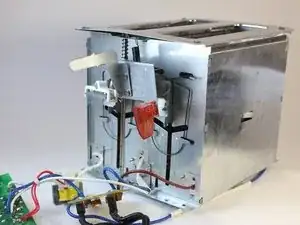

    • The following wires must be disconnected to be able to remove the chassis: Blue x2, White x2, Bronze x1

    • Disconnecting the cables in the middle is recommended to be able to reconnect new wires from a new chassis easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.
