In this guide we will open up the toaster and remove the old faulty power cord.
-
-
Grip the black plastic lever nub firmly and carefully remove it from the metal lever. Use one hand to hold the toaster in place while you pull the lever nub with the other.
-
-
-
Flipping the toaster upside down, use a T7 Torx Screwdriver to remove the four 10mm screws that keep the outer shell attached.
-
Flip the toaster back over and slide off the shell making sure to slip the toaster lever (now without the black plastic nub) through the lever opening in the shell.
-
-
-
Locate and remove the two 8mm screws that attach the circuit board (located inside of the shell) from the shell itself using the Phillips #2 screwdriver.
-
-
-

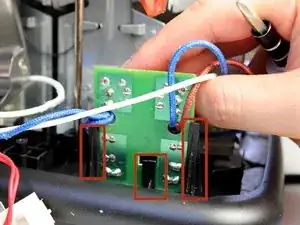

Remove the small circuit board by pulling on the two side tabs while simultaneously releasing the middle clip.
-

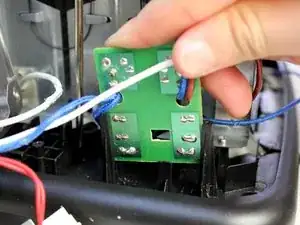

Slide the small circuit board out of it's clips.
-
-
-

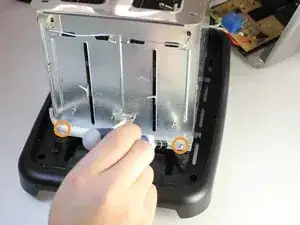

Using a Philips #2 screwdriver, remove the front two 8mm screws attaching the chassis to the base.
-

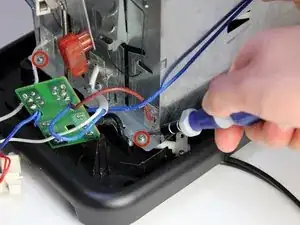

Flip the toaster around and proceed to remove the two remaining 8mm screws.
-
-
-

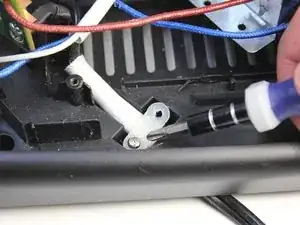

Upon removing the chassis, look in the toaster base to find the little white tab holding the power cord in place. Use a Philips screwdriver to remove the two 10mm screws.
-
-
-

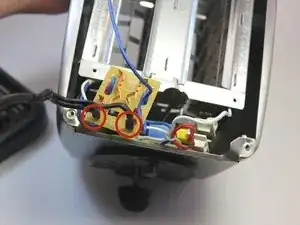

De-solder the two power cord wires that are connected to the small circuit board.
-
Solder on replacement power cord.
-
To reassemble your device, follow these instructions in reverse order.
