Professional Series PS77401 Shell Removal

Geschrieben von: Zachary
  • Kommentare: 0
Professional Series PS77401 Shell Removal

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to safely remove the outer shell of the toaster. Note that the outer shell is not the chassis.

  1. ELZ1DomxQtvse1gG

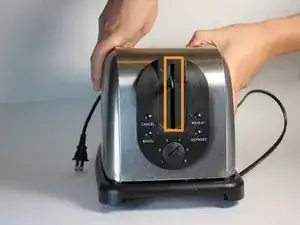

    • Make sure that the toaster is unplugged before attempting any sort of disassembly!

  2. UrSsf3dOcb15LXkE
    UrSsf3dOcb15LXkE
    JxYFJYyqerdaQHrM

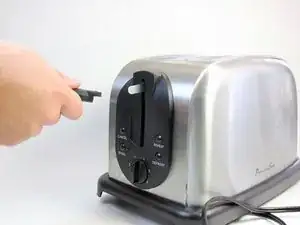

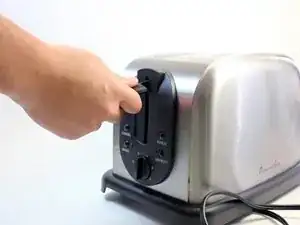

    • Grip the black plastic lever nub firmly and carefully remove it from the metal lever. Use one hand to hold the toaster in place while you pull the lever nub with the other.

    • If this is the first time detaching this piece, it will take some effort to remove. Be careful as pulling too hard can cause damage to the inner lever mechanism.

  3. Mrl11nyXAXffOqQj
    Mrl11nyXAXffOqQj
    Ljr2UuFTUg4Y3kDD
    N2Cwy4OdwljLBXW1

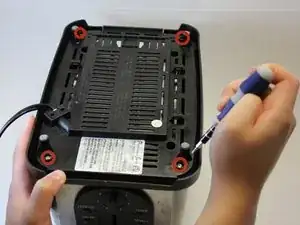

    • Flipping the toaster upside down, use a T7 Torx Screwdriver to remove the four 10mm screws that keep the outer shell attached.

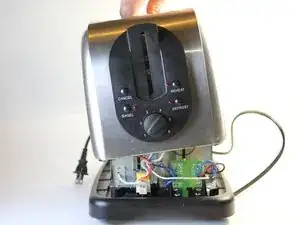

    • Flip the toaster back over and slide off the shell making sure to slip the toaster lever (now without the black plastic nub) through the lever opening in the shell.

    • The outer shell should now only be connected by its internal wiring.

  4. cvxUl4WJhKy2iIqx
    cvxUl4WJhKy2iIqx
    4hnZPwEugBZOZC1H

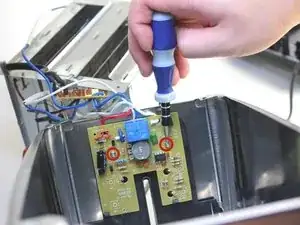

    • Locate and remove the two 8mm screws that attach the circuit board (located inside of the shell) from the shell itself using the Phillips #2 screwdriver.

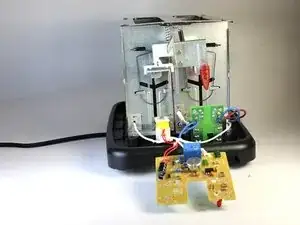

    • The shell should now be completely separated from the rest of the toaster.

Abschluss

To reassemble your device, follow these instructions in reverse order.
