Professional Series PS77401 Toaster Solenoid Replacement

Geschrieben von: Jacob M Bassetti
  • Kommentare: 2
Professional Series PS77401 Toaster Solenoid Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

The solenoid's job is to cut the power allocated to the heating elements and release the latch, springing the toast upward. Consistently burnt toast no matter what desired setting applied is a good sign that the solenoid needs to be repaired in some way.

  1. ELZ1DomxQtvse1gG

    • Make sure that the toaster is unplugged before attempting any sort of disassembly!

  2. UrSsf3dOcb15LXkE
    UrSsf3dOcb15LXkE
    JxYFJYyqerdaQHrM

    • Grip the black plastic lever nub firmly and carefully remove it from the metal lever. Use one hand to hold the toaster in place while you pull the lever nub with the other.

    • If this is the first time detaching this piece, it will take some effort to remove. Be careful as pulling too hard can cause damage to the inner lever mechanism.

  3. Mrl11nyXAXffOqQj
    Mrl11nyXAXffOqQj
    Ljr2UuFTUg4Y3kDD
    N2Cwy4OdwljLBXW1

    • Flipping the toaster upside down, use a T7 Torx Screwdriver to remove the four 10mm screws that keep the outer shell attached.

    • Flip the toaster back over and slide off the shell making sure to slip the toaster lever (now without the black plastic nub) through the lever opening in the shell.

    • The outer shell should now only be connected by its internal wiring.

  4. cvxUl4WJhKy2iIqx
    cvxUl4WJhKy2iIqx
    4hnZPwEugBZOZC1H

    • Locate and remove the two 8mm screws that attach the circuit board (located inside of the shell) from the shell itself using the Phillips #2 screwdriver.

    • The shell should now be completely separated from the rest of the toaster.

  5. 4fqHJb6oMTtrOCJs
    4fqHJb6oMTtrOCJs
    IVPWd2RpL3ej3FCR

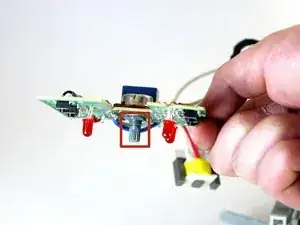

    • Locate the metal knob protruding from the removed circuit board.

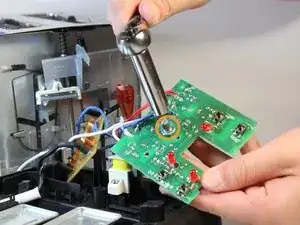

    • Remove the 10mm nut with an equally sized wrench and replace the now removable solenoid.

    I'm not too sure about the meaning of the word "solenoid" here. I think what is removed is the potentiometer.

    The solenoid or electro-magnet is the yellow element that we see hanging from a red cable on the last picture.

    Or am I mistaken??!!

    Cris -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacob M Bassetti

Mitglied seit: 24/01/14

113 Reputation

Ein Kommentar

That’s not a solenoid, that’s a potentiometer. And it’s probably soldered in so you would need to desolder it and solder in a new one, if you could find the part.

Stewart -
