Promowide SP1790 Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

6 - 9 Minuten

Einleitung

This guide will instruct you on how to replace the charging port in this speaker. This will ensure the performance of the device's wireless function.

  1. DhXtPAXSWm5AYPr4

    • Locate the six screws on the back of the speaker.

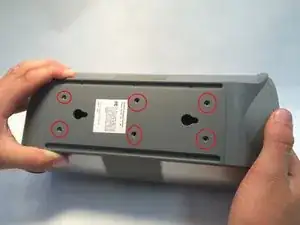

  2. XoOhloVapEDyPfT4

    • Unscrew each of the six screws, then set them aside.

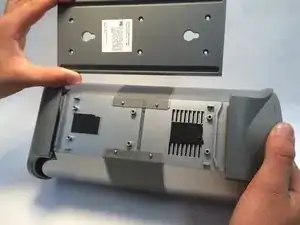

  3. BPEWXdvRifCxEsFG

    • Gently remove the back cover of the speaker.

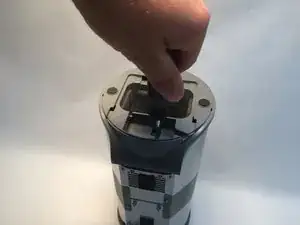

  4. yhMqtqaLADEjTkFR

    • Place the speaker upside down.

    • Remove the battery cover located in the center of the speaker.

  5. AabPEbpTG4FZpSV6

    • Locate and remove the four screws under each of the pads near the power socket.

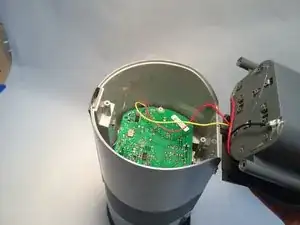

  6. 2JBY2ktPEAaREjHs

    • Gently remove the bottom.

    • Do NOT pull out or damage wires.

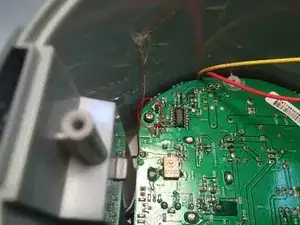

  7. RqwumnLwbhTUIUyf

    • Remove the single motherboard screw.

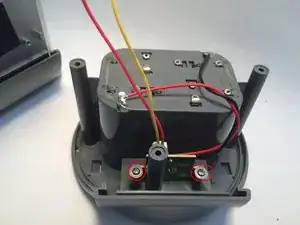

  8. bCQSjTuPfWp4HVRh

    • Remove both of the screws holding the power socket to the bottom chassis.

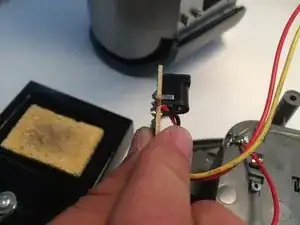

  9. OFYP1iuYBf2CvvJK

    • Desolder and remove the old wire.

    • Insert the new wire and solder it into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
