Propel Gyro-X Drive Gears Replacement

Geschrieben von: Jack Jenner
  • Kommentare: 0
Propel Gyro-X Drive Gears Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

You may need to replace your helicopter's drive gears if they become damaged or stripped. Replacing the gears will require you to completely disassemble your helicopter, so make sure to place small parts and screws in a safe place to avoid losing them.

  1. FqJRlyRktvGllZTv

    • Stabilizing links are easy to break. Be gentle when prying them off.

    • Place the tweezers on the sides of the links and pull straight away from the top point of connection.

  2. jG6eDejetNkOLxUw
    jG6eDejetNkOLxUw
    wvwVVKISXEQpYkDq

    • Remove the two 6.0 mm Phillips #00 screws from the rotors.

  3. 45xLslniayUqQKT5
    45xLslniayUqQKT5
    euRjHpuDX2QTMtDM

    • Pull the rotors away from the mounting brackets.

  4. VHpgLVZDyxKWCJPG

    • Remove the two 5.0 mm Phillips #00 screws from the rotors.

    • The blades will fall off when the screws have been removed.

  5. AWAHMyVnWkFlrjBV

    • Locate the nubs on either side of the helicopter.

  6. PoTPEuTkirMmioeg

    • Pull the body shell off of the nubs on both sides.

  7. 2thdHsJN2RU1U1IN
    2thdHsJN2RU1U1IN
    r4RuWxQOWjDroTat

    • Push the front of the nose back towards the tail of the helicopter.

    • Push down on the shell and pull it away from the body, so that both slots pass over the hooks on the bottom of the helicopter.

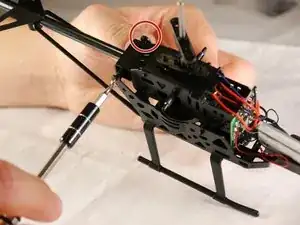

  8. rcx2sIQaMJb1Am55

    • Remove the two 8 mm Phillips #00 screws between the motor casing and the body.

  9. IWU2BmTgN4hDtdUZ

    • Remove the 4 mm Phillips #00 screw from the tail.

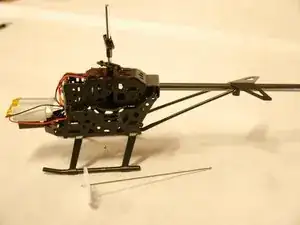

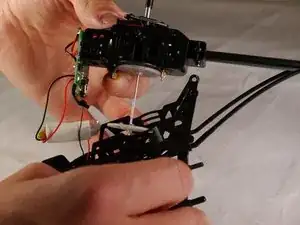

  10. BoweterGoftQAZcr
    BoweterGoftQAZcr
    45eVuJVxbahpZxQ3
    cPtAGwykJ6F6ZUk5

    • Use your fingers to free the motor casing from the body, by bending the plastic body casing outwards at each of the four nubs.

    • Pull the motor casing upwards from the body.

    • The drive gear will slide out when you lift the motor casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
