Propel Gyro-X Stabilizer Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

After rough flights the stabilizer beam may end up getting damaged. Without a working stabilizer beam, the gyro-copter will not fly as it should. The best way to fix this is by replacing the stabilizer beam completely.

  1. FqJRlyRktvGllZTv

    • Stabilizing links are easy to break. Be gentle when prying them off.

    • Place the tweezers on the sides of the links and pull straight away from the top point of connection.

  2. jG6eDejetNkOLxUw
    jG6eDejetNkOLxUw
    wvwVVKISXEQpYkDq

    • Remove the two 6.0 mm Phillips #00 screws from the rotors.

  3. 45xLslniayUqQKT5
    45xLslniayUqQKT5
    euRjHpuDX2QTMtDM

    • Pull the rotors away from the mounting brackets.

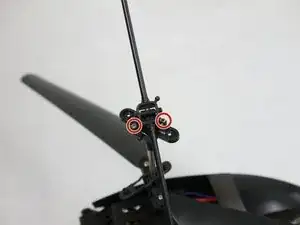

  4. viCigKGXUi5e5vmP

    • Remove the two 5mm PHillips #00 screws screws

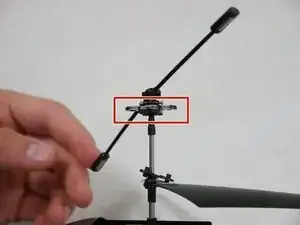

  5. t6mhBvaQrihklKRj
    t6mhBvaQrihklKRj

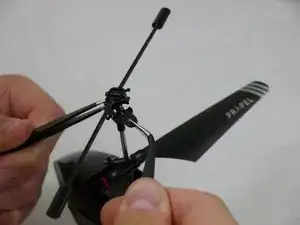

    lrJIO4GtptLNgch1

    • Using the tweezers twist the rotor attachment bracket apart.

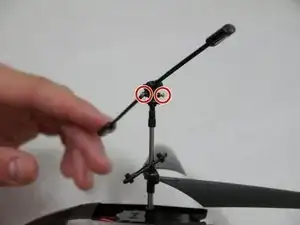

  6. QkfETYKPJkaJBb42

    • Remove the two 6mm #00 screws

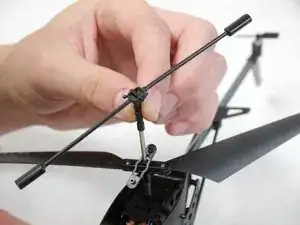

  7. C1KlCMfVBxBU4wGm

    • Pull up on the stabilizer assembly to remove it completely from the drive shaft.

Abschluss

To reassemble your device, follow these instructions in reverse order.
