Propel Gyro-X Top Propellor Blades Replacement

Geschrieben von: Sarah Atmadja
  • Kommentare: 1
Propel Gyro-X Top Propellor Blades Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide you will learn how to remove and replace the top two propellor blades of the Gyro-X. This is a common procedure, because crashing your Gyro-X will often result in propellor damage. To remove the propellors you will only need to remove 4 small screws. Be careful not to lose these after removal.

  1. FqJRlyRktvGllZTv

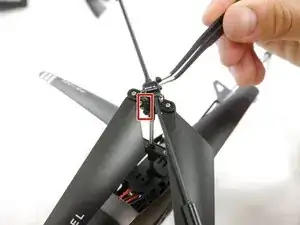

    • Stabilizing links are easy to break. Be gentle when prying them off.

    • Place the tweezers on the sides of the links and pull straight away from the top point of connection.

  2. jG6eDejetNkOLxUw
    jG6eDejetNkOLxUw
    wvwVVKISXEQpYkDq

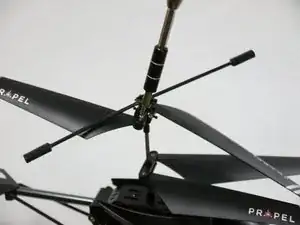

    • Remove the two 6.0 mm Phillips #00 screws from the rotors.

  3. 45xLslniayUqQKT5
    45xLslniayUqQKT5
    euRjHpuDX2QTMtDM

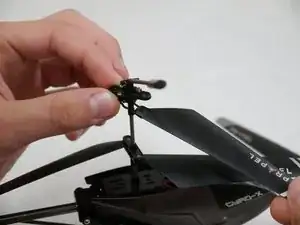

    • Pull the rotors away from the mounting brackets.

Abschluss

To reassemble your device, follow these instructions in reverse order.
