Einleitung
The Protocol Dronium 3x Prop Blades are responsible for spinning and thus lifting the drone into the air. The prop blades themselves are sturdy, however, be extremely careful as not to lose or strip any of the screws associated with the prop blades. Doing so could cause the prop to malfunction or not work altogether.
Werkzeuge
-
-

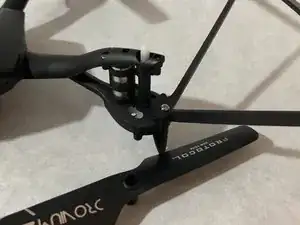

Ensure the drone is powered off and set the drone upright.
-
Using a Phillips #0 screwdriver, remove the 6 mm screw from the center of each rotor blade.
-
Lift the prop blade from the arm and set aside.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
