Protocol Dronium III AP Camera Replacement

Geschrieben von: Steven Mooers
  • Kommentare: 0
Protocol Dronium III AP Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

50 Minuten - 1 Stunde

Einleitung

This guide explains how to replace the Protocol Dronium III AP Camera.

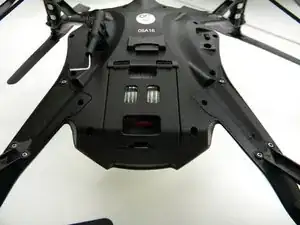

  1. QqEfM6asDDCxWOtC
    QqEfM6asDDCxWOtC
    KYZZeITNr6MsWPp5

    • Ensure the drone is powered off.

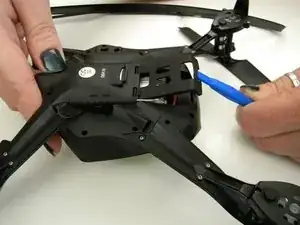

    • Press in and lift battery compartment cover.

    • A soft pry tool may be used for easier access.

  2. mtZK6qwPcxoJIFZu

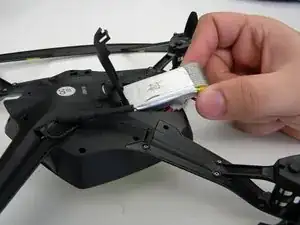

    • Remove battery pack from body of drone.

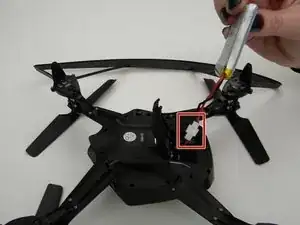

  3. d22JHwJtR42NJBhR
    d22JHwJtR42NJBhR
    xEVTgfo6VNuF1j3H

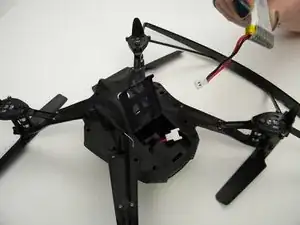

    • Disconnect white connectors between the battery pack and drone.

  4. YYrUPq5pPqJXDeVe

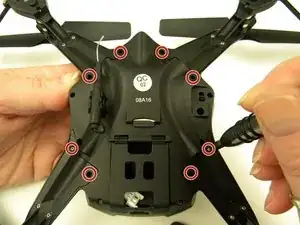

    • Remove the eight (8) 5mm screws attaching the motor arms to the body using a JIS #00 screwdriver.

  5. xddMvGTXbjfcUhjG
    xddMvGTXbjfcUhjG
    2XjGHC2AlgHjQABm

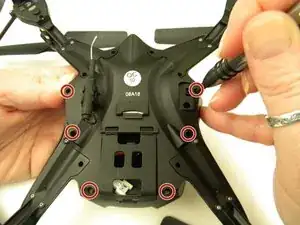

    • Remove the six (6) 5mm screws attaching the Body Cover to the Body of the drone using a JIS #00 screwdriver.

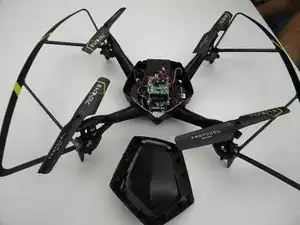

    • Remove the Body Cover.

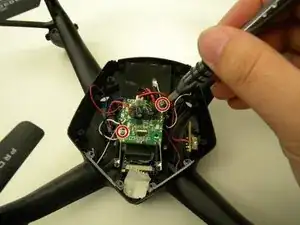

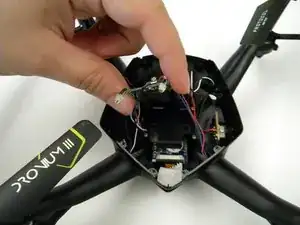

  6. sCJepYDEAGhQsqKs
    sCJepYDEAGhQsqKs
    dBUlgkMp1nTW3Slg

    • Remove the two (2) 5mm screws attaching the Motherboard to the body of the drone using a JIS #00 screwdriver.

    • Lift the Motherboard off the mounting position.

    • Do not pull hard on the Motherboard as solder connections are fragile.

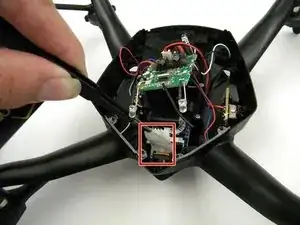

  7. QGk5K56x6yd3xfkr

    • Remove the tape covering the camera with the tweezers.

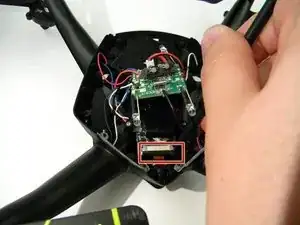

  8. T4Kt5vaRMaSvHtql
    T4Kt5vaRMaSvHtql
    GryDxRe3r6SUEiKJ

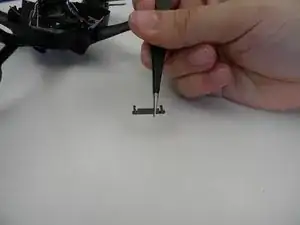

    • Remove the plastic holding the ribbon cable connector with the tweezers.

    • Be careful with the ribbon cable, it is easy to damage.

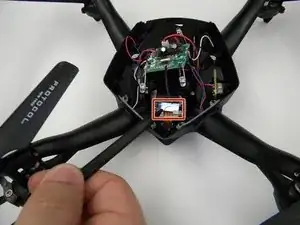

  9. Cjs22BddsKpokPDv

    • Move the ribbon cable out of the way with the Spuger.

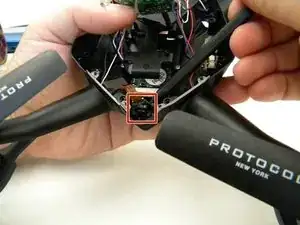

  10. J4xXuJJo6TLVX1h3
    J4xXuJJo6TLVX1h3
    eL2jOITcYVGn3QNe

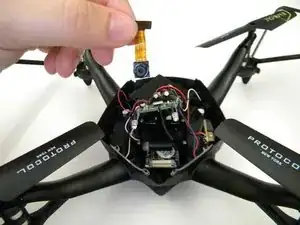

    • Remove the camera by gently prying it out of the bracket with the spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
