Protocol Dronium Two Blade Guard Replacement

Geschrieben von: Edwin Brietz
  • Kommentare: 0
Protocol Dronium Two Blade Guard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to remove the blade guard on the Protocol Dronium Two. The only tool you will need is the #0 Phillips screwdriver. The screwdriver is also included in the box of your drone. Perform this repair in a clean and well lit area so that you don't lose the screw.

  1. U1QtHMmCAoIOyKmo

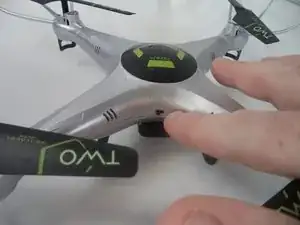

    • Turn the drone off by moving the selector switch to the left.

  2. UaMaqOcJPbJGOK1b
    UaMaqOcJPbJGOK1b
    ivZsVgKEfAIpuLFT

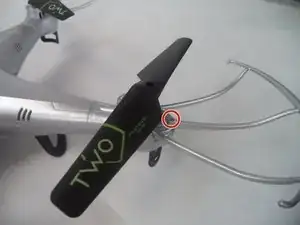

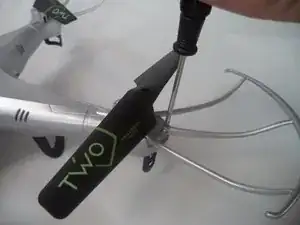

    • Using your screwdriver, remove the 8.36mm Phillips screw.

  3. P6CA6Snb2xrEEB5o

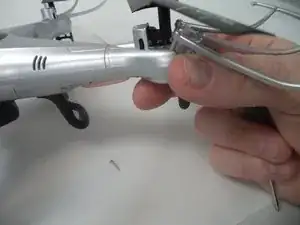

    • While holding the drone with one hand, gently lift the blade guard straight up and remove it.

    • Be careful not to break off the two studs holding the blade guard in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
