Protocol Dronium Two Rechargeable Battery Replacement

Geschrieben von: Edwin Brietz
  • Kommentare: 0
Protocol Dronium Two Rechargeable Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide is for replacing the rechargeable battery in the Protocol Dronium Two. This repair doesn't require tools. A spare battery is not included in the packaging but can be bought from the Protocol store.

  1. ICEos1n3wxt5bUBf

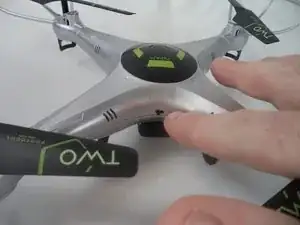

    • Turn the drone off by moving the selector switch to the left.

  2. repAbOKdNPX2J1IQ

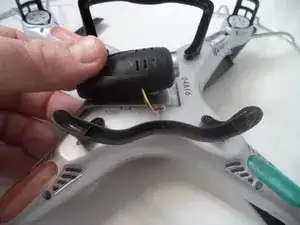

    • On the underside of the drone, gently pull the battery compartment away from the drone.

    • Press down on the camera as shown to get a better grip.

  3. deiyPOmSX1NylRHd
    deiyPOmSX1NylRHd
    HaLEnNcZZBJKHpSd

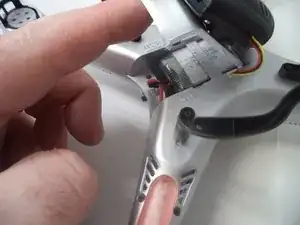

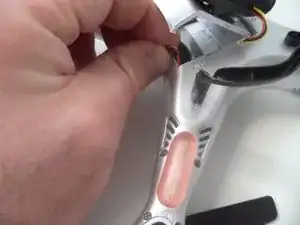

    • If the power cable of the battery is connected to the drone, remove it by gently pulling it out.

  4. FiYFcSUqtUpePvkE

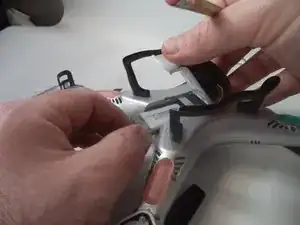

    • Remove the battery from its compartment by sliding it out away from the drone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
