This guide will walk you through how to replace the light emitting diodes (LED) on the drone. Minimal tooling is required, but the risk of damaging the drone is greater then many of the other guides if each step is not followed and executed with extra care.
Werkzeuge
-
-

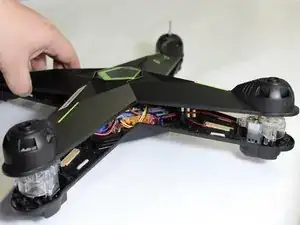

Separate the upper and lower housing units by lightly pulling the two housing units apart.
-
-
-

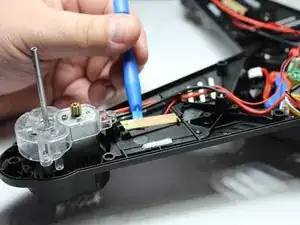

Remove the LED strip from the housing by applying light pressure away from the lower housing with the plastic opening tool.
-
-
-

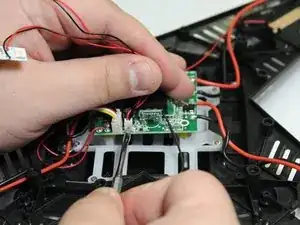

Unclip the wire plug from the motherboard by applying light pressure away from the motherboard with the plastic spudger.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
