Protocol Galileo Stealth Motor Replacement

Geschrieben von: Matthew Selting
  • Kommentare: 0
Protocol Galileo Stealth Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide will walk you through how remove the drone motors from the lower housing. Minimal tooling is required; however, prerequisite steps are required. This guide is useful for replacing a motor that may be defective or damaged.

  1. JZPVK5TU2XE1hqSm

    • Remove the chrome shaft cover by lightly pulling it away from the drone.

  2. YPZOKcJc6fiFnxk6

    • Using a Phillips #000 screwdriver, remove the 7mm screw from the propeller stop.

    • Be sure to apply adequate pressure when removing the screw to prevent stripping it out.

  3. bnqbeOxCleNFal1Z

    • Remove the propeller stop from shaft by lightly pulling it away from the drone.

  4. vPLYKDEG6geOScxF

    • Remove the propeller from shaft by lightly pulling it away from the drone.

  5. KgcLUybLL5moWkOU
    KgcLUybLL5moWkOU
    EsYAAqiGrF6abtX4

    • Remove the 8mm long Phillips #0 screws (24 total) from the lower housing unit.

    • Take care to place the screws in a safe place to prevent losing them.

  6. 2FHwmL6J2PCZFOK4

    • Separate the upper and lower housing units by lightly pulling the two housing units apart.

  7. MmF3V2MwrLKbvtmn
    MmF3V2MwrLKbvtmn
    MR1lFEiQXxHVaaWC

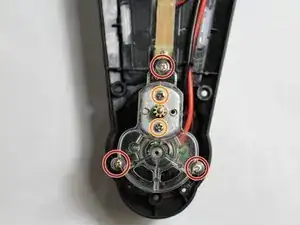

    • Remove the 3 outer 8mm long Phillips #0 screws from the lower drone housing.

    • Remove the 2 inner 3 mm long Phillips #0 screws from the drone motor.

    • Place screws in a safe place to prevent misplacing them.

  8. nFXBN6vd6oRGlopQ

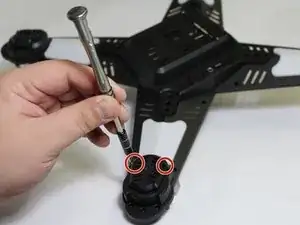

    • Remove the two 6mm long Phillips #0 screws from the lower motor cover located on the underside of the drone.

    • Place the screws in a safe place to prevent misplacing them.

  9. viWkilrqFpkQqMlt

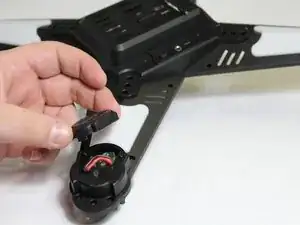

    • Remove the motor cover by lightly pulling it away from the drone.

  10. cAAx4s3bFbvxwWGq
    cAAx4s3bFbvxwWGq
    KngC5MU3DYTvNtwC

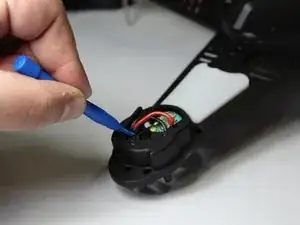

    • Unclip the wire plug by applying light pressure to the wire plug with the plastic opening tool, and remove the motor.

    • This plug can be a bit difficult to remove, but it does not require much force to remove.

    • Avoid damaging the plug and wires when unclipping wire plug.

Abschluss

To reassemble your device, follow these instructions in reverse order.
