This guide will walk you through how to remove the motor propeller from the drone. This is a very simple process, and minimal tooling is required. This guide is useful for replacing blades that may have been damaged.

  1. JZPVK5TU2XE1hqSm
    • Remove the chrome shaft cover by lightly pulling it away from the drone.

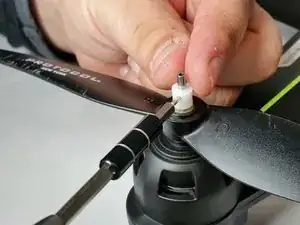

  2. YPZOKcJc6fiFnxk6
    • Using a Phillips #000 screwdriver, remove the 7mm screw from the propeller stop.

    • Be sure to apply adequate pressure when removing the screw to prevent stripping it out.

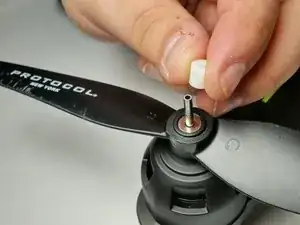

  3. bnqbeOxCleNFal1Z
    • Remove the propeller stop from shaft by lightly pulling it away from the drone.

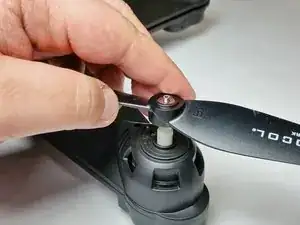

  4. vPLYKDEG6geOScxF
    • Remove the propeller from shaft by lightly pulling it away from the drone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
