Einleitung

Use this guide to access and replace the main circuit board of the Protocol Kaptur GPS drone.

You can also use this guide to replace the battery: Protocol Kaptur GPS Battery Replacement.

  1. CG5IsO2TQsSc6jlw
    CG5IsO2TQsSc6jlw
    GEQJLA1Bwlq6AI4e
    • The battery is accessible through the back of the drone.

    • Press the tabs on both sides of the white stripe to pull the battery out.

  2. XHA1TvdoHiY2BI4M
    XHA1TvdoHiY2BI4M
    NwRKqkWnJ6CDvjOx
    qJAICunKneNYTKIp
    • Remove the screws starting with the three smaller ones on the top part of the battery.

    • Remove the three screws on the other side.

    • There are two screws tucked under where the yellow circle is located. You will need to remove the other screws first before you get to these two.

    • There should be one 7 mm Phillips head screw, three 6 mm Phillips head screws, and four 5 mm Phillips head screws.

  3. lUG2ceLr6LugK2DE
    lUG2ceLr6LugK2DE
    IpjpNK2NsSthDIHv
    • Remove the top piece, and gently pry the two halves apart. Divide the sticker if necessary.

  4. RTGqiFPtioYauZwA
    RTGqiFPtioYauZwA
    gvVQ2nQ6VTgdkkxl
    • The battery is now removable from its container.

    • During reassembly, make sure the outlet is returned to its holder and faces the correct direction.

  5. kkvSocAoyKgXLQIl
    kkvSocAoyKgXLQIl
    g3HntAXjjgj2oLEP

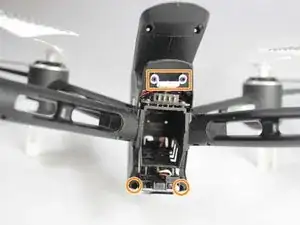

    • Remove the 4x 7mm screws on the top and bottom, and the 2x 5mm screws from the middle, then remove the back part of the housing.

    • Remove the two hidden screws at the bottom, and the white power button.

    • There will be 6x 7 mm Phillips head screws, and 2x 5 mm Phillips head screws.

  6. 3yD5i21AejKAXSWI
    3yD5i21AejKAXSWI
    HLOOviLZSWfNtRtH
    gQBAJqHac5VoxXex

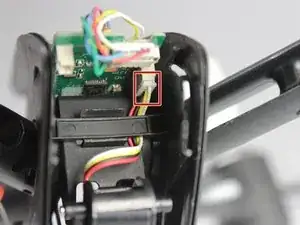

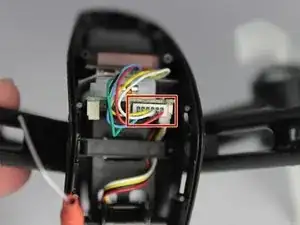

    • Unplug all the cords from the circuit boards.

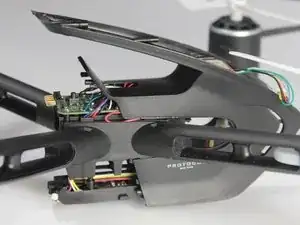

    • Carefully slide the main body right off the arms.

  7. ANqQGAdDcQuXn2WY
    ANqQGAdDcQuXn2WY
    S2oQUdK4gJbv6C4y

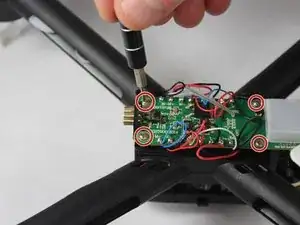

    • Remove the four 4mm Phillips screws.

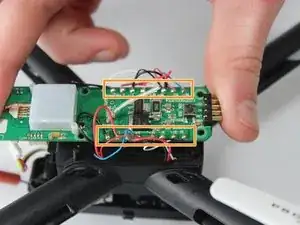

    • Desolder all cords on the circuit board, and pull the board up and out.

    • It is important to keep track of where the leads came from. Red/Blue and Black/White pairings belong to motors, whereas Black/Red pairings belong to lights. The ports are labeled on the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
