Protocol Vento Wi-Fi Antenna Replacement

Geschrieben von: Maria Larcomb
  • Kommentare: 0
Protocol Vento Wi-Fi Antenna Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

35 Minuten

Einleitung

This guide will demonstrate how to remove and replace the Protocol Vento Wi-Fi antenna.

  1. DtErloCGXCFR25bt

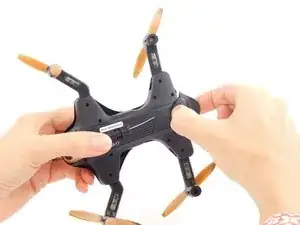

    • Grasp the tail end of the drone where the lip of the battery protrudes.

  2. omKIuD3ZxmKgM6MA

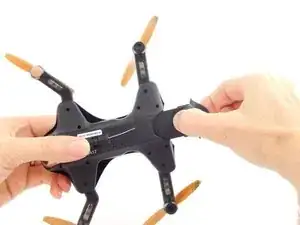

    • Pull away from the drone to remove the battery.

    • Do not attempt any repairs or replacements before removing the battery from the drone.

  3. x3Pjl4TUMUOf5VSJ

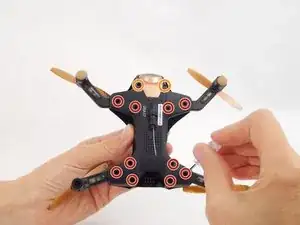

    • To get into the drone, twelve total screws need to be removed:

    • Ten 5.7mm Phillips #000 screws from the bottom of the drone body.

    • Two 4.5mm Phillips #000 screws at the front of the drone.

    • It is not necessary to remove the four screws on the arms of the drone.

  4. KEq4WHFmIUqjMP6G
    KEq4WHFmIUqjMP6G
    d1w1M2xvUrOZ6s6q
    WdykEgVfiC3UslP6

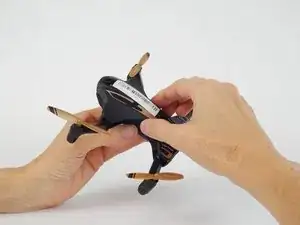

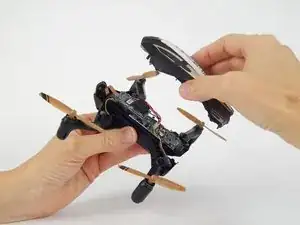

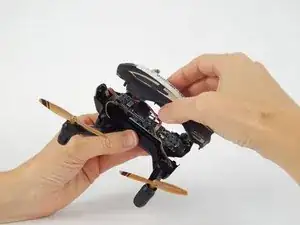

    • Flip the drone over and lift off the top plastic shell of the drone.

  5. NNHi2pdnm4SILRvb
    NNHi2pdnm4SILRvb
    p3UH2tHCIY1MEWMm

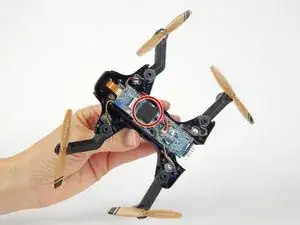

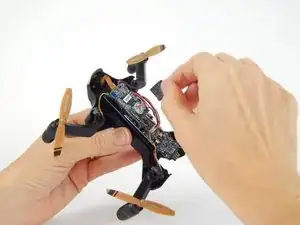

    • Remove the foam adhesive pad located on the Wi-Fi transmitter board.

  6. g6qOmXEHYTrAOecD
    g6qOmXEHYTrAOecD
    RCj1BwkrUU3x3gvs

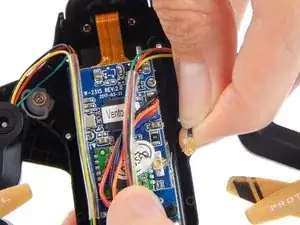

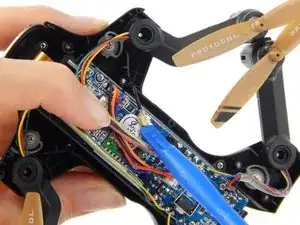

    • Pry the gold Wi-Fi antenna connector, located under the previously removed foam pad, away from the Wi-Fi transmitter board to disconnect it.

    • Be sure to only apply force to the gold connector and not the black wire attached to it, as the connection between the two is very fragile.

  7. RxpfDqaDdFTmRw2R

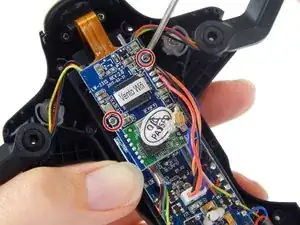

    • Remove the two 3.8mm Phillips #000 screws from the Wi-Fi transmitter board.

    • Be careful with the delicate ribbon cable attached to the camera.

  8. pMxGfuRdVahIS1AW

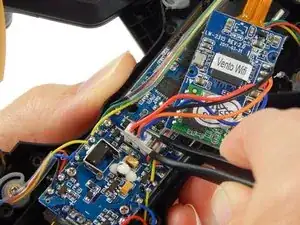

    • Disconnect the white clip that connects the four colored wires (black, orange, red, blue) to the motherboard.

    • Be sure to pull only on the white clip, as to avoid damaging the wires.

  9. 2NjSVs2pfaDFxgsL
    2NjSVs2pfaDFxgsL
    YViJRRVViouMXeLq

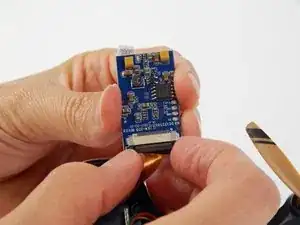

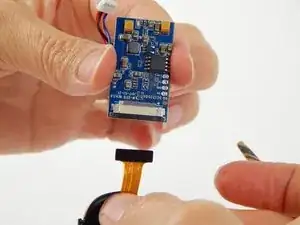

    • Gently pull the black wedge away from the main board until it shifts to a stop. You will feel it slide out, then stop.

    • The black insert acts as a wedge to keep the ribbon cable attached to the board. The wedge needs to be jostled loose before the cable can be removed.

    • Lightly pull the ribbon cable away from the connector.

  10. xh5we5GuyhCOp3kl

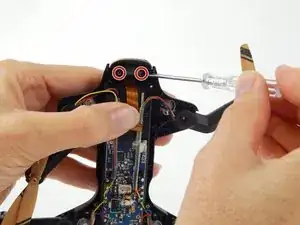

    • Remove the two 4.9mm Phillips #000 screws securing the camera to the front of the drone body.

  11. 52wuqZ3sFYZN4Afo
    52wuqZ3sFYZN4Afo
    d4enoP13s1VQpUHi
    sp5UVgDcDUVQqoZf

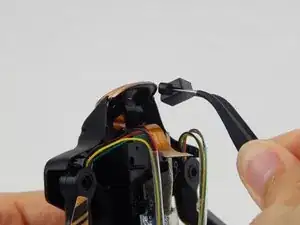

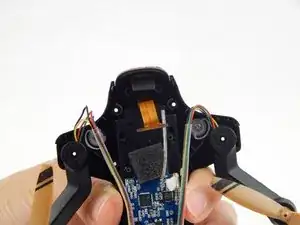

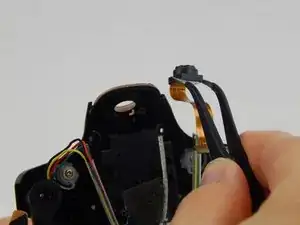

    • Lift the camera holder and the camera up and away from the drone.

  12. hKinvHQpI5HLkRLQ

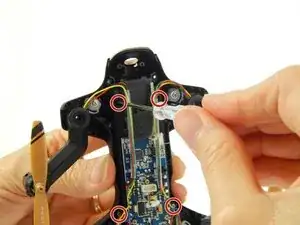

    • Unscrew the four 4.9mm Phillips #000 corner screws that are securing the motherboard’s black base to the drone.

    • It is not necessary to unscrew the motherboard from the black base.

  13. LUmXuEovroDlToUI
    LUmXuEovroDlToUI
    jOZvGNG3RKnh4Jnf

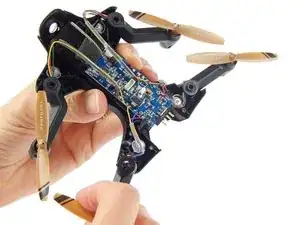

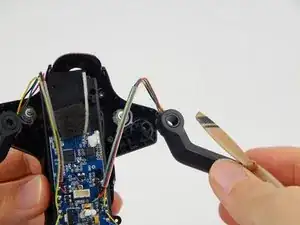

    • Grasp and pull each of the four drone arms in the direction of their propellers, one at a time, to remove them from the drone.

  14. 3EuX6KRWmhZoShYR

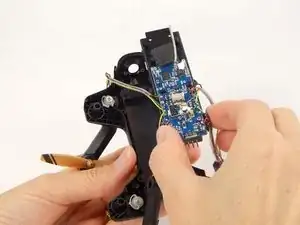

    • Gently pull the motherboard out of the drone.

    • The four arms of the drone will dangle from the motherboard by their cords.

  15. rM6EVf1p4wyBFVmg

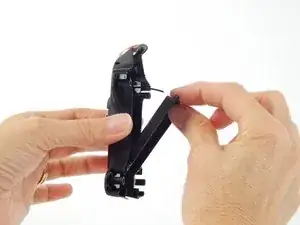

    • Pull the black, rectangular shell out of the drone.

    • It is not attached with screws.

  16. EVFXZyvHBVFv1Rga
    EVFXZyvHBVFv1Rga
    oCyYWTSYUOnZGhqH

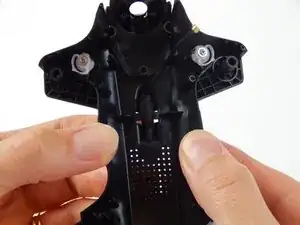

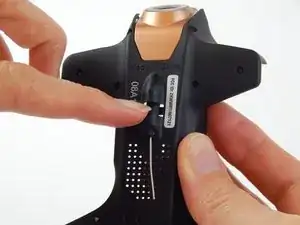

    • Hold the drone’s shell with both hands so that the inside of the shell is facing you.

    • Gently flex the shell outward, so that the two latches (holding the antenna in place) move apart slightly.

    • At the same time, push the antenna from the back of the drone towards you until it releases from the latches.

Abschluss

To reassemble your device, follow these instructions in reverse order.
