Puritan Bennett 560 Inlet Air Filter Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

1 Minute

Einleitung

This guide shows the steps for removing and replacing the inlet air filter in the Puritan Bennett 560 Ventilator.

Warnings:

• Check the cleanliness of the inlet air filter located on the rear of the ventilator and replace it if necessary. It is recommended that you check or replace this filter at least once per month. When the ventilator is installed on a wheelchair, the environmental conditions may cause the filter to become dirty more rapidly.

• Failure to replace a dirty inlet air filter or operating the ventilator without a filter may damage the ventilator.

• The inlet air filter is not reusable. Do not attempt to wash, clean, or reuse it.


The repair information is also available on pages 139-140 (Section 5, Pages 9-10) of the Service Manual that is linked in the documents section.

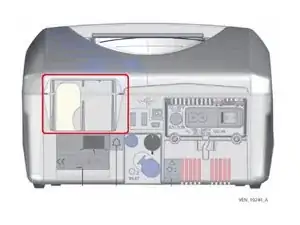

  1. JNYxgyuWvZWcXlEV

    • Locate the inlet air filter on the back of the ventilator.

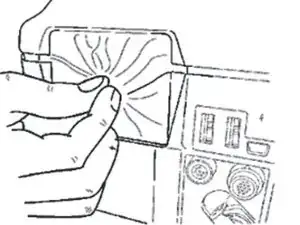

  2. HMb2plcuICRZBxgS

    • Pinch the center of the filter and pull outward.

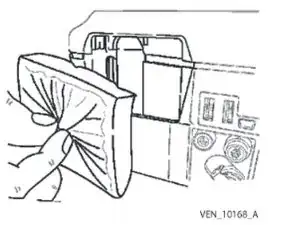

  3. gEFRe4HBmRyUhAah

    • Face the foam surface of the filter towards the ventilator.

    • Push the filter into position.

    • To ensure a good seal tuck the corners of the filter into the opening in the housing of the ventilator.

    • Make sure that the filter is not twisted or distorted when installed and fully covers the opening.

Abschluss

To reassemble your device, follow these instructions in reverse order.
