Purple SmartVP Speaker Replacement

Geschrieben von: Brian Maulucci
  • Kommentare: 0
Purple SmartVP Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 - 55 Minuten

Einleitung

  1. pcTwZeutiLV1I6Tl
    pcTwZeutiLV1I6Tl
    aYFNruBcGvALso4C
    WtLsxSG2EhuCixlT

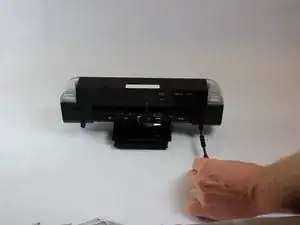

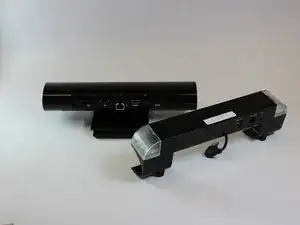

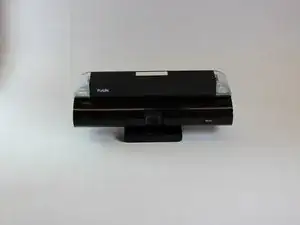

    • Remove the top bar by removing the 5cm hex T10 screws on the back of the device as shown. Then gently pull off the top bar from the main component.

  2. XwAmWyUYeuMeiAXF
    XwAmWyUYeuMeiAXF
    YYCtXjasyoDjvBe4

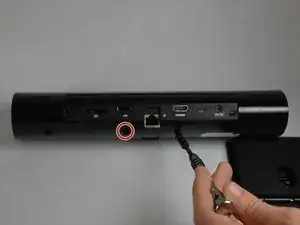

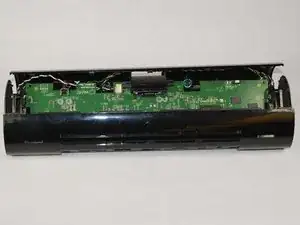

    • Remove the 1.2 cm hex T9 screws and gently open up the device.

  3. AnbGNbsXoTYtO5Eh
    AnbGNbsXoTYtO5Eh
    fkfCNrGMCHbqLOt1

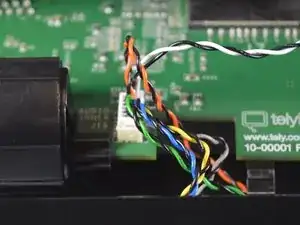

    • Disconnect the speakers from the motherboard.

  4. yTUAVGjVuYCScLQm
    yTUAVGjVuYCScLQm
    Vin2WwspIFDgKuC3
    DXKVKhaGUAaMALdY

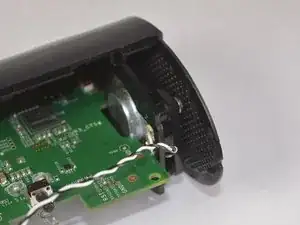

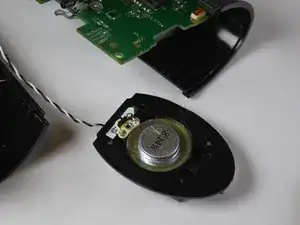

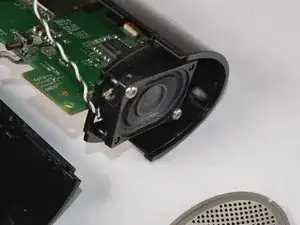

    • Remove the speaker from the plastic shell of the device.

  5. CiiQYK3uk1KDY1f3
    CiiQYK3uk1KDY1f3
    5XSDkKTQawKHglKn

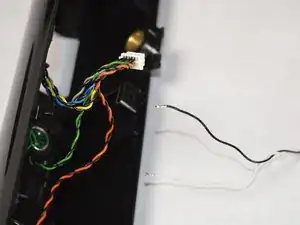

    • Release the wires connected to the speaker from the 12-pin connector with a spudger and replace the affected speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
