Pyrus PY21S03211 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Battery replacement is a simple replacement for the Pyrus video camera, and the first thing anyone should do before taking the device apart. Check with the troubleshooting page to see if your device battery needs to be replaced.

  1. 5KSsBGjUQNlyUoT1

    • Turn the video camera upside down so the bottom of the device is visible.

  2. DnWR6NuNdee3UoSe
    DnWR6NuNdee3UoSe
    BwNQG6txnFsiZbj3

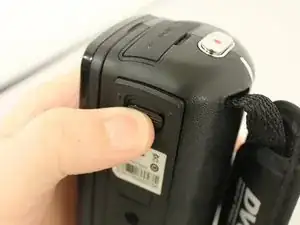

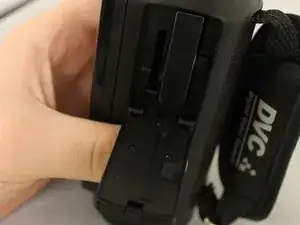

    • Pull back the tab to reveal the battery compartment.

  3. SMlEig1HqGIlpYFA
    SMlEig1HqGIlpYFA
    pmqDJqvuqVoODDa3

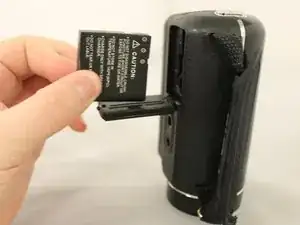

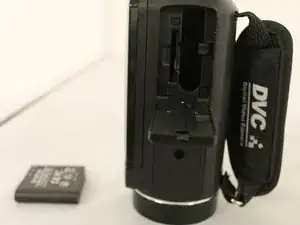

    • Pull back tab that is holding in the battery in place and remove the battery from the device.

  4. 3nJZwlLEANFJl6jB

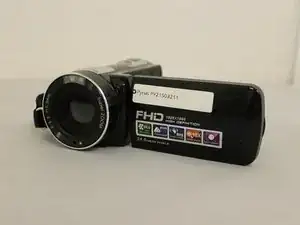

    • Insert replacement battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
