Pyrus PY21S03211 Display Screen Replacement

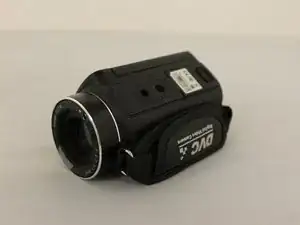

Turn the video camera upside down so the bottom of the device is visible.

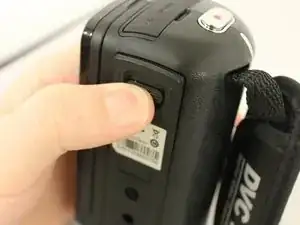

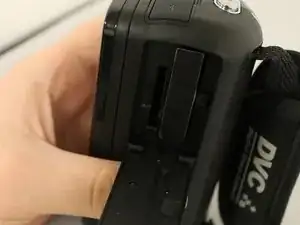

Pull back the bottom tab to reveal the battery compartment.

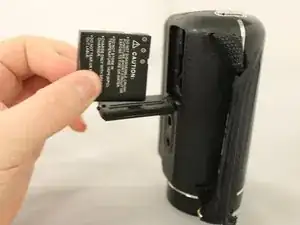

Pull back tab that is holding in the battery in place and remove the battery from the device.

Open up the display screen.

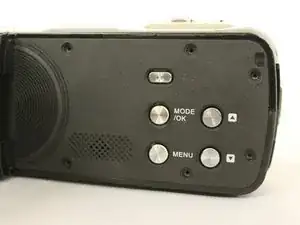

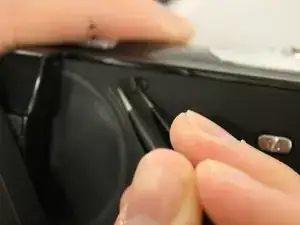

Use tweezers to carefully peel off the circle stickers, revealing the 4mm screws.

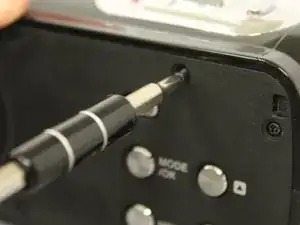

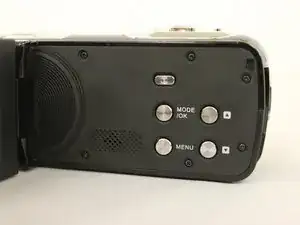

Use a 00 screwdriver to remove all six 4mm screws from the side of the device.

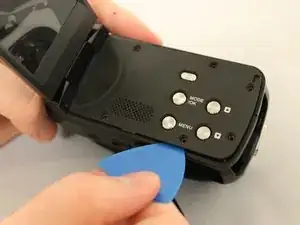

Use a plastic pick to pry off the side face of the device and carefully remove the side face.

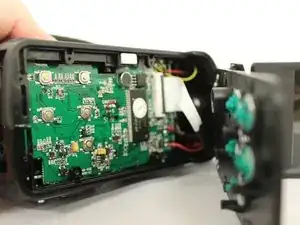

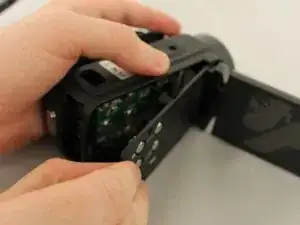

Carefully open the side face. Keep the side face close to the body of the device to avoid pulling on the white wires.

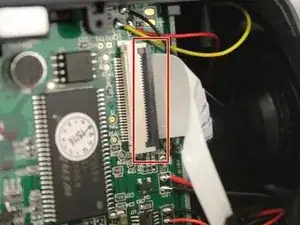

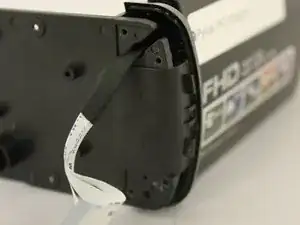

To remove the side face entirely, find the large white connector and flip open the grey lip with tweezers. Gently remove white connector.

Put the device body to the side and keep the display screen side in front of you.

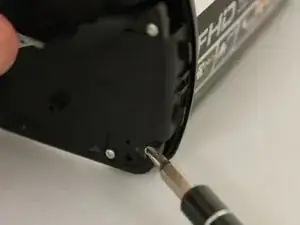

Remove the four silver 4mm screw from the back side of the side face.

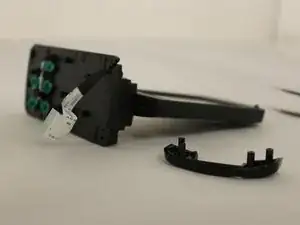

Use tweezers to pry the shiny black plastic corner piece from the side face.

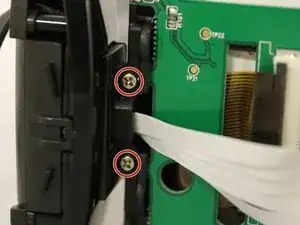

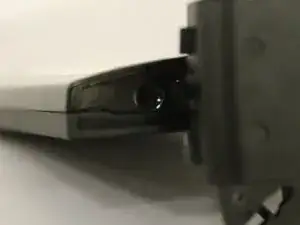

Twist the screen to the side to reveal two black 4mm screws.

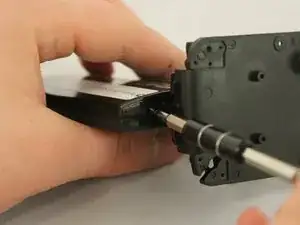

Remove screws from both sides of the screen.

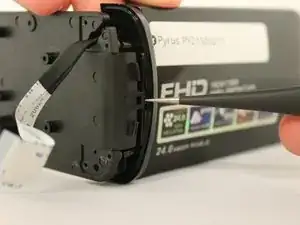

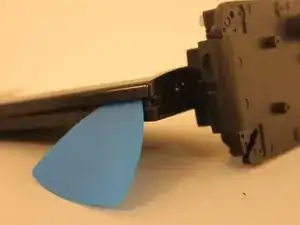

Use a plastic pick to pry off the backside of the screen.

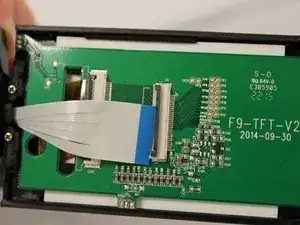

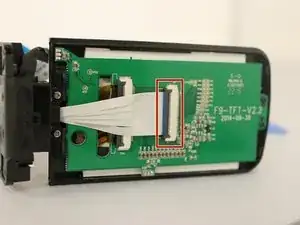

Find the large white connector and flip open the grey lip with tweezers. Gently remove the white connector.

Find two 4mm silver screws at the base of the screen and remove them.

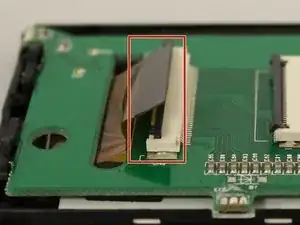

Use tweezers to flip open the grey lip and gently remove the gold transparent connector.

Find two 4mm black screws at the top of the display screen and remove them.

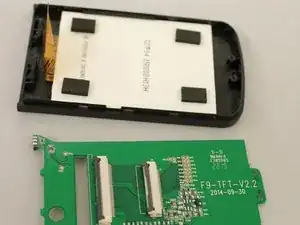

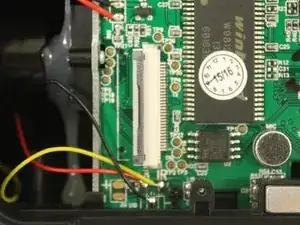

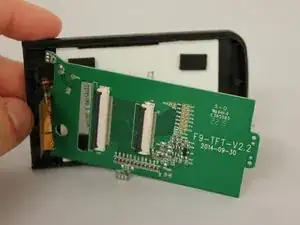

Remove green board.

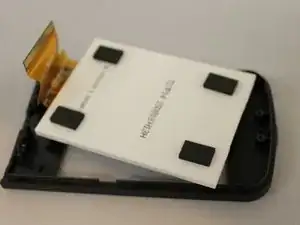

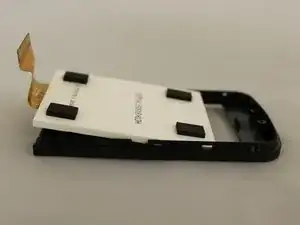

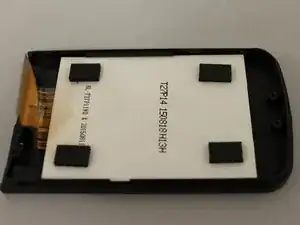

Remove the white display screen with your hands.

Insert replacement screen.
