QFX IT-437 Battery Replacement

Geschrieben von: Douglas
  • Kommentare: 0
QFX IT-437 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

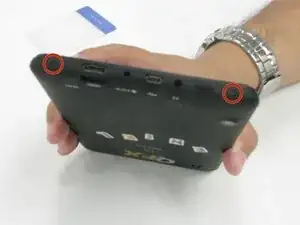

  1. 3Wx1DiMbRdvEk4BD

    • Begin the process by using a PH00 Phillips screw driver.

    • Remove the two 1.2mm x 3mm screws at the bottom of the tablet.

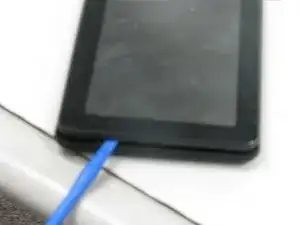

  2. oXprQgF2rZPl5eE1
    oXprQgF2rZPl5eE1

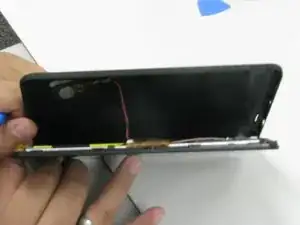

    OATViVDEEgYMSkGL

    • Use the iFixit plastic opening tool to pry open the back of the tablet.

    • Do not remove the back case completely as tape has to be removed from the wires, and pulling the case apart can tear off the wires.

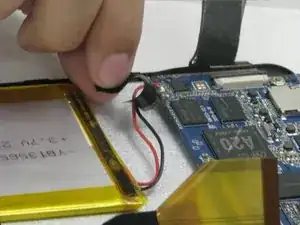

  3. UlJMG2wByvDZ1QCO

    • Remove the tape connecting the battery to the motherboard.

    • Save the tape in good condition for the replacement so the wires do not get stuck in the case.

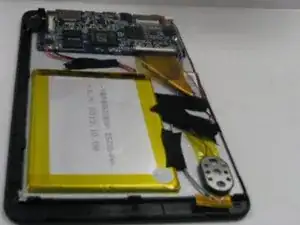

  4. VeLajSH2siM1QQyL

    • Remove the black tape attaching the wires to the battery.

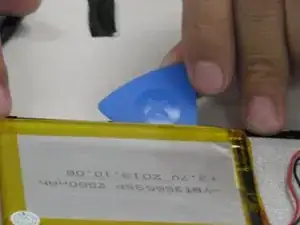

  5. iPACTZ3pvGYj3l5c

    • Use the plastic opening pick in order to remove the battery from the tablet, and set it aside for the replacement.

    • The removed wires will have to be soldered back on to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
