QFX IT-437 Motherboard Replacement

Geschrieben von: Douglas
  • Kommentare: 0
QFX IT-437 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

  1. dIqYXbVjCwh2KDPb

    • Begin the process by using a PH00 Phillips screw driver.

    • Remove the two 1.2mm x 3mm screws at the bottom of the tablet.

  2. py221olwHJbDwcO2
    py221olwHJbDwcO2
    txR6BUPdMs6NJ2W2

    • Use the iFixit plastic opening tool to pry open the back of the tablet.

    • Do not remove the back case completely as tape has to be removed from the wires, and pulling the case apart can tear off the wires.

  3. MYkJQgnUwFbTIDov

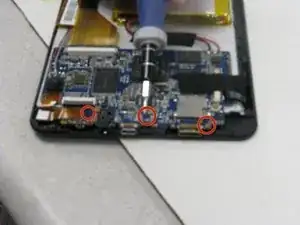

    • In order to unseat the motherboard, use the Phillips PH00 screw driver bit to remove the three 1.2mm x 3mm screws.

  4. kVWKTjptJVqQivLu

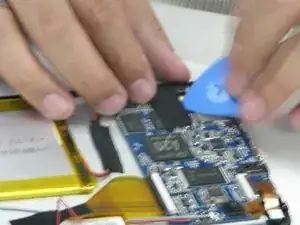

    • Once the motherboard is loose, remove the tape above the SD card slot using an iFixit opening pick.

    • Be careful not to rip or damage the tape or else new tape will have to be used for the new motherboard.

  5. DTiJu4kKgqDrxRJ3

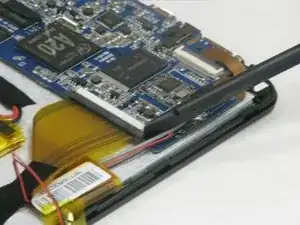

    • Use the spudger to remove the ribbon.

    • Avoid using too much force here or else the ribbon can be ripped.

  6. v2JLbJ1RV5CBEQHK

    • Use the spudger in the top corner of the tablet and lift the camera up.

  7. ZORapC6SqlpfrTF6

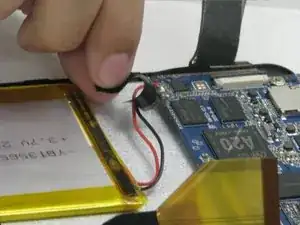

    • Lift the tape over the wires that are holding them to the tablet insulation.

  8. rNjJD2JSejAMYCey

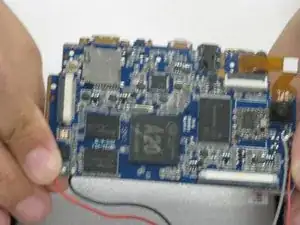

    • Pull out the motherboard and set it aside.

    • The wires must be soldered back on to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
