Qualcomm QCP-2760 Keypad Replacement

Geschrieben von: Colin Packard
  • Kommentare: 0
Qualcomm QCP-2760 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

1 Minute

Einleitung

Prior to this step, remove battery, phone backing, and motherboard

  1. PTPRJGOVCt1tKyFZ

    • Unscrew the back battery plate from the phone using a T6 Torx screwdriver.

    • The screw does not need to be removed completely, the back battery plate will unhinge from the phone.

  2. yGXr3WhfPmjPpnvU
    yGXr3WhfPmjPpnvU
    BqAhSaqCqoqgCsHK

    • Using the T6 Torx screwdriver, remove the two screws located at the bottom of the back of the phone.

    • Find the seam between the front and back of the phone

    • Pry the seam open using a plastic opening tool, or your fingers.

    • Some force is required

  3. bR1s24VsKd4mRZRi

    • Locate the four metal clips holding the motherboard onto the phone.

    • Pull the clips away from the motherboard while lifting the motherboard out of the case.

    • The motherboard is attached to the case by a fragile cable, do not apply any stress to the cable.

  4. VsCJPaqgMRn2i2Q4
    VsCJPaqgMRn2i2Q4
    kE6aUcxe2dsDMhuu

    • Place the motherboard down so that the screen is facing up.

    • Grab the small brown connector plug at the sides with a fingernail or tweezers and flip it up.

    • Locate, but do not disconnect, the four screen clips.

  5. P1UHrU4VKEQHcGcF
    P1UHrU4VKEQHcGcF
    2OKHZuxw2gwT3HyT

    • Flip the motherboard over so that the screen is facing down.

    • Again, be careful not to put stress on the speaker cable.

  6. vFCymboq3eHMjk1S

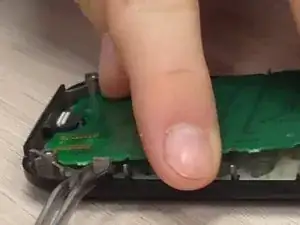

    • Remove keypad circuit board by lifting up circuit board while pulling clip.

    • Remove rubber keypad

    • Insert new rubber keypad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
