Quantum Axis A23 Speaker Replacement

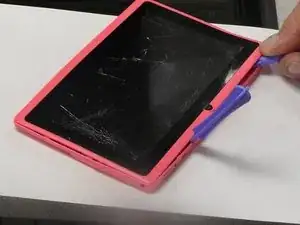

Use plastic opening tools to pry open the rear casing of the your Quantum Axis A23. Slide the tool along the edges to release the plastic tabs.

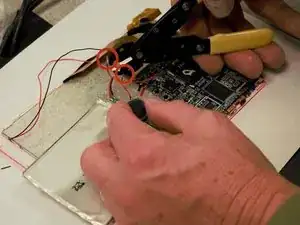

Once the device is open, take the speaker’s wiring and cut both the red and black wires in the middle using the wire cutter/stripper tool. Then strip both the red and black wires with the same tool.

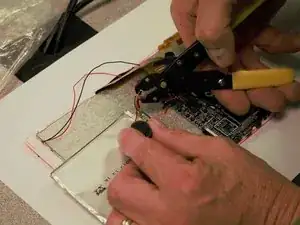

Take the new speaker and strip both the red and black wires in the middle with wire stripper/cutter tool.

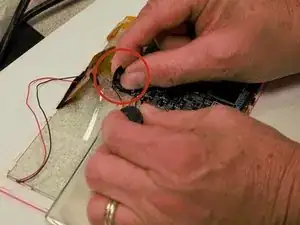

Take the red wire from the speaker and the red wire from your device and twist the two ends together then wrap in electrical tape. Repeat this step for the black wires.
