Quantum View 10.1 camera Replacement

Start by turning the tablet over with the screen down. Carefully use a plastic opening tool to pry the cover off. Start from the corner opposite the hibernate button.

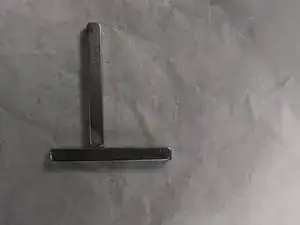

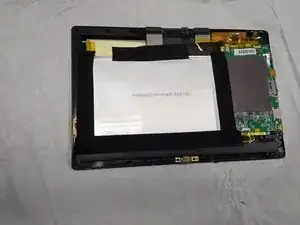

Pick up the magnets from the bottom edge of the tablet next to the keyboard connection and put them in a place that they will not get lost. Then carefully remove all 4 strips of electrical tape.

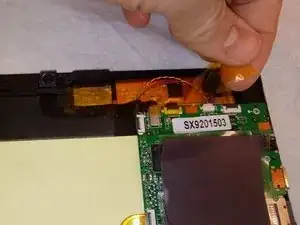

Using a small plastic opening tool; genteelly pull the connection off of the motherboard.

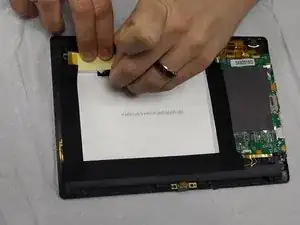

Remove yellow tape.

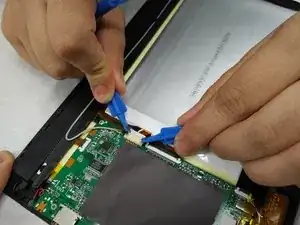

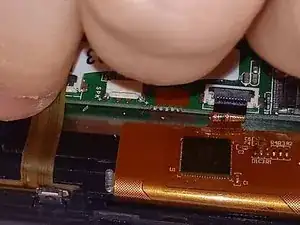

Unclip ribbon connector.

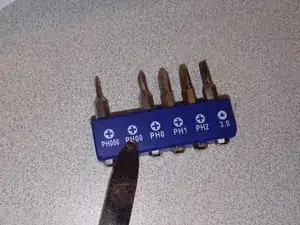

Unscrew plastic camera holder using a PH00 screwdriver bit.

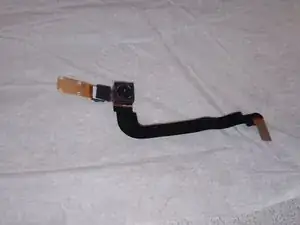

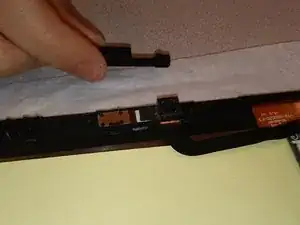

Release the plastic holder tab and remove camera.
