RCA 10 Viking Pro RCT6K03W13 Battery Replacement

Geschrieben von: Ryan Wickett
  • Kommentare: 4
RCA 10 Viking Pro RCT6K03W13 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will talk you through the process of replacing the battery in your RCA 10 Viking Pro RCT6K03W13.

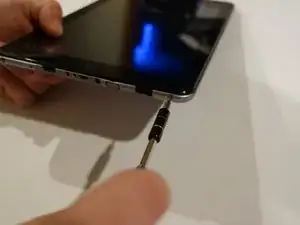

  1. BQ2AWdrxZSoSTYKv
    BQ2AWdrxZSoSTYKv
    PnlAaXBUEvbNyFOl
    1YjWXN1I3HRcPbVP

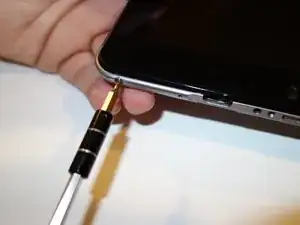

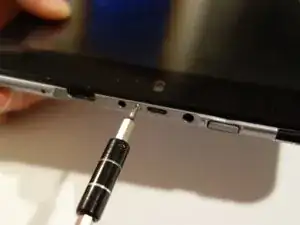

    • Remove the three Phillips #00 screws at the bottom of the device.

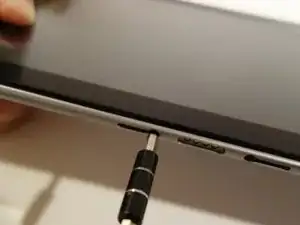

  2. Er6DELMh1SdNZUTK
    Er6DELMh1SdNZUTK
    cGtDxPqJjbpxLjiA

    • Remove the two Phillips #00 screws to the left and right of the keyboard connector.

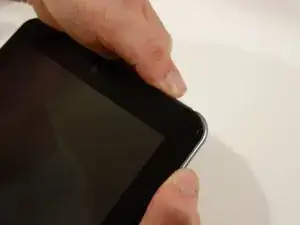

  3. ChyRCHWYdAp5rkYT

    • Pull on one of the bottom corners to begin to pull off the back plate.

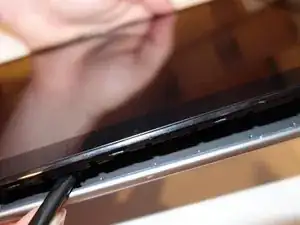

  4. imfYCjACjMCbXC2A
    imfYCjACjMCbXC2A
    TFtmFvOOeLVOXtns

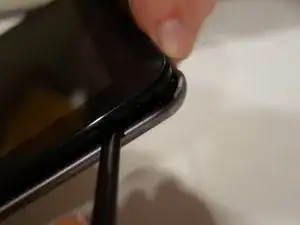

    • Work around the outside of the chassis, using the spudger to pry the backplate off.

    • After doing this for about half the device, the backplate should pop right off.

  5. fiKvJLuZbNigdSSZ

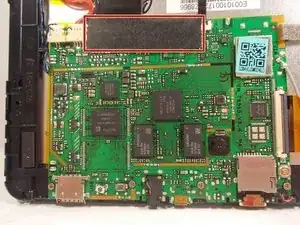

    • Remove the tape over the connectors on the motherboard and other side of the battery.

  6. 2kNIHlXSdOKKJAFg

    • Disconnect the red and black keyboard wires connecting the battery to the motherboard.

  7. IaVOIxN5IFAEuPLS

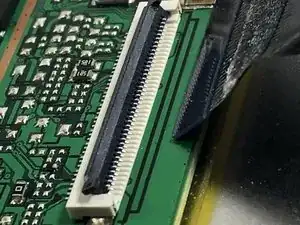

    • Disconnect the black ribbon cable running over the battery. Flip up the black clamp and pull the cable out.

  8. w4OZFDLaIiKDT6iZ
    w4OZFDLaIiKDT6iZ
    bEhsCmK1W3vM5DEk

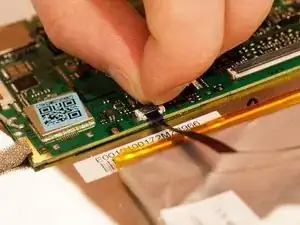

    • Remove the cable over the battery connecting the motherboard and the power connector.

    • Flip up the black clamp and pull the cable out.

  9. AGnxm6riXcTILemL
    AGnxm6riXcTILemL
    LYevsUnSnVqSEpGu

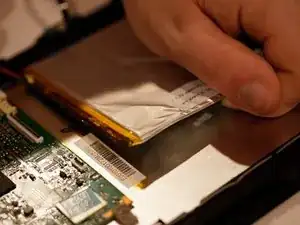

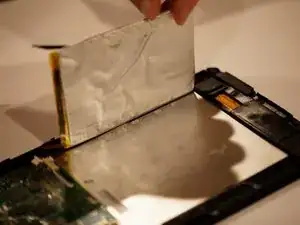

    • Pull out battery. It is taped to the device so it is safe to pull out.

    • Look for damage to the battery. If damaged, make sure to not get any acid on your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
